THIN Linear – Surface Mount

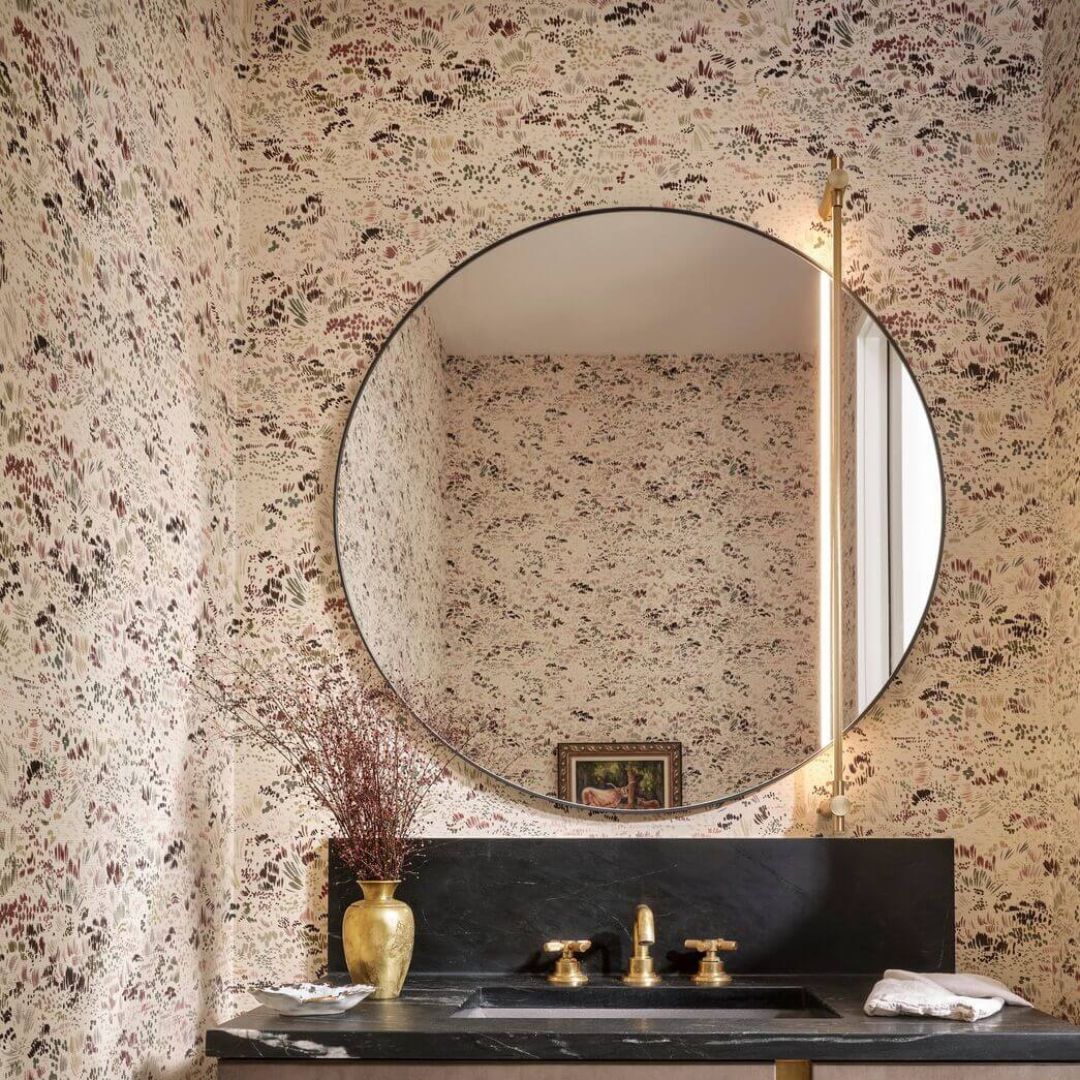

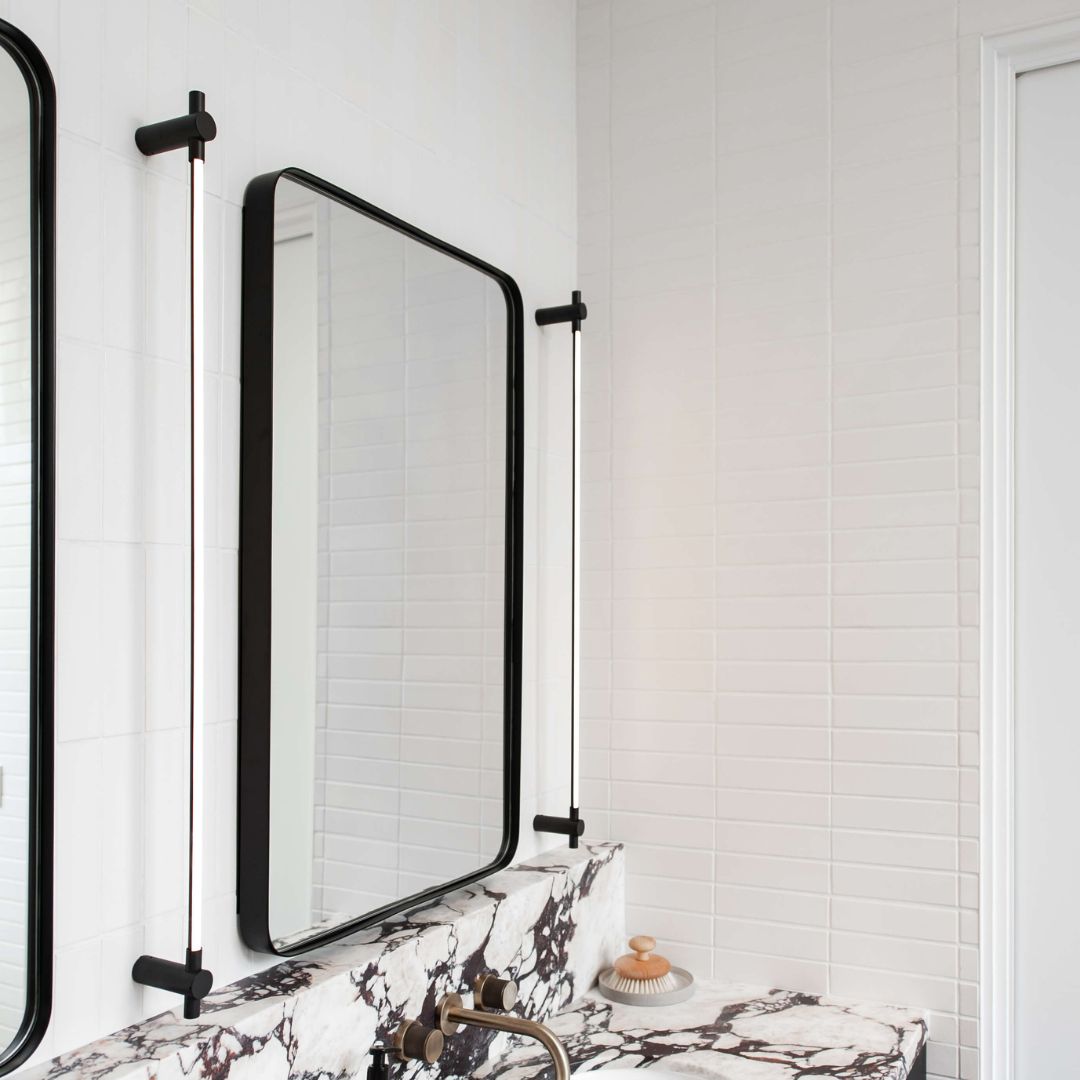

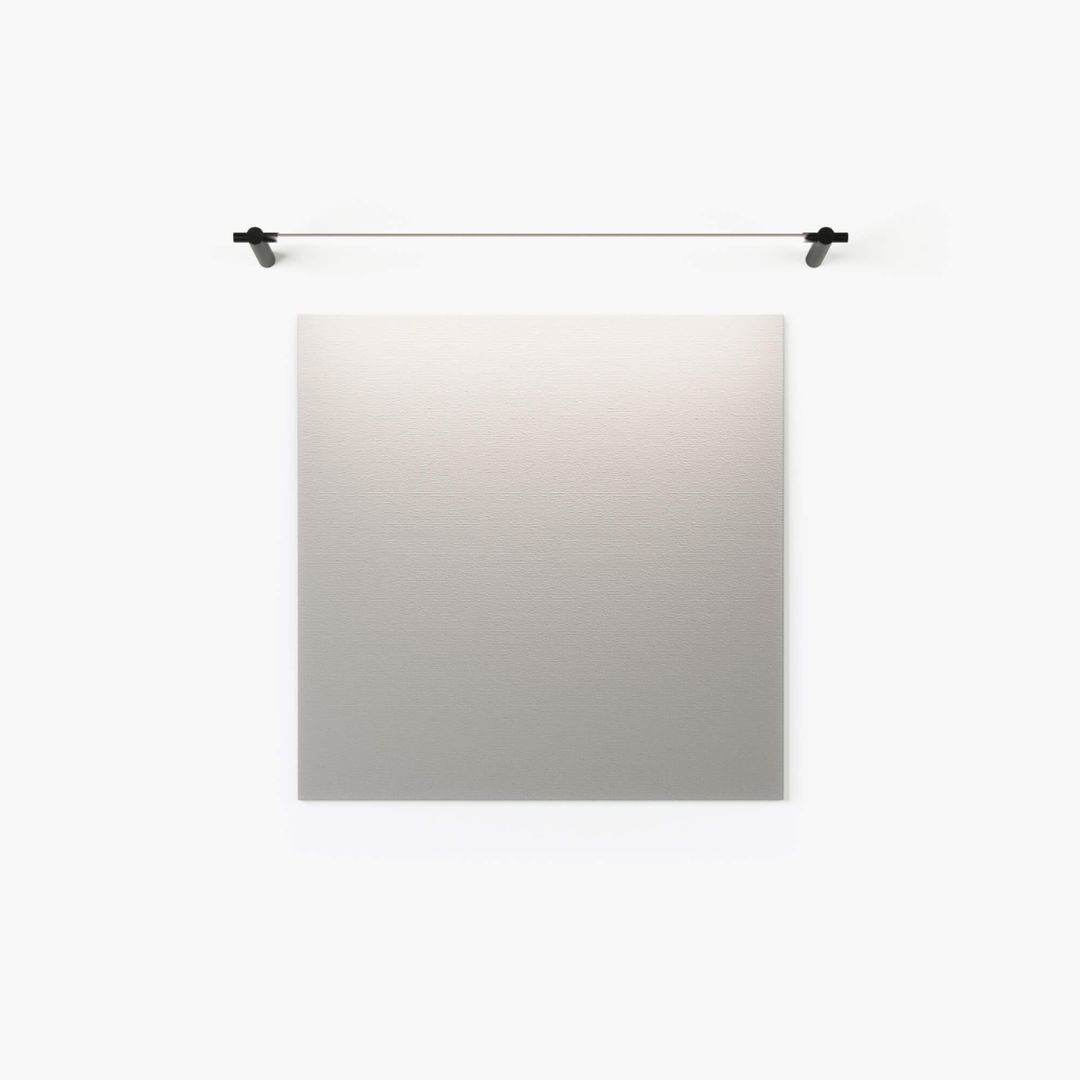

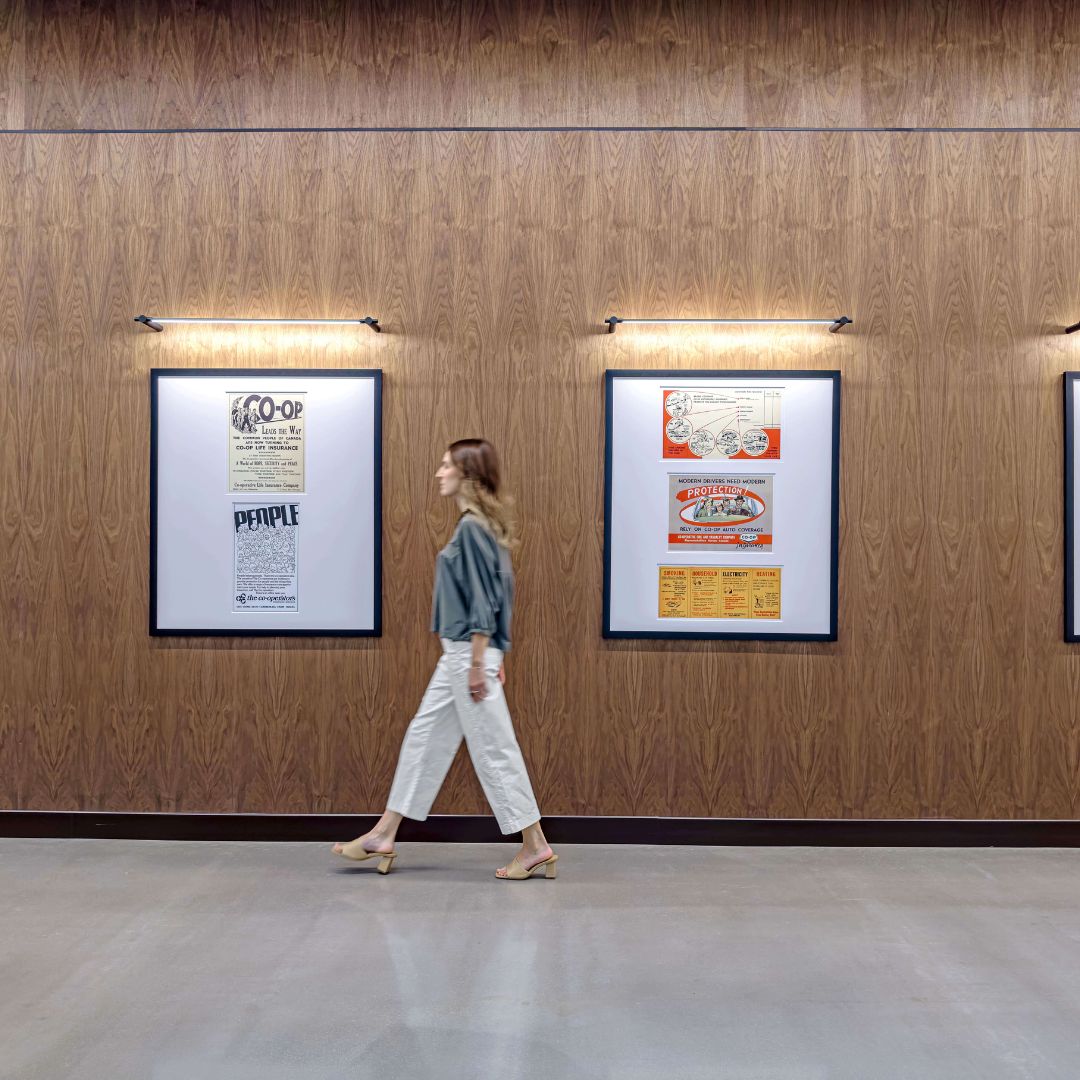

This fixture can be used as a picture light or vanity light, suitable for residential and commercial environments
Light segments in various lengths can be mounted individually or to each other — using snap-in magnetic stand-off connectors — to create linear fixture configurations up to 24 ft (nominal)
Pricing applicable to United States and Canada only.
Shipping not included for Alaska, Hawaii, and Canada.
Specifications
- 24 VDC output Class 2 constant voltage power supply
- 120–277 VAC input voltage
- Dimming options: 2-Wire/TRIAC/Forward Phase; 0–10 V; 3-Wire
- Frosted lens with 90° beam spread
- CRI 95+
- R9 90+
- 90 LM/W delivered efficacy
- 300 LM per linear foot (maximum)
- Segments can individually rotate 360°
- Wall brackets / standoffs mount directly to surface

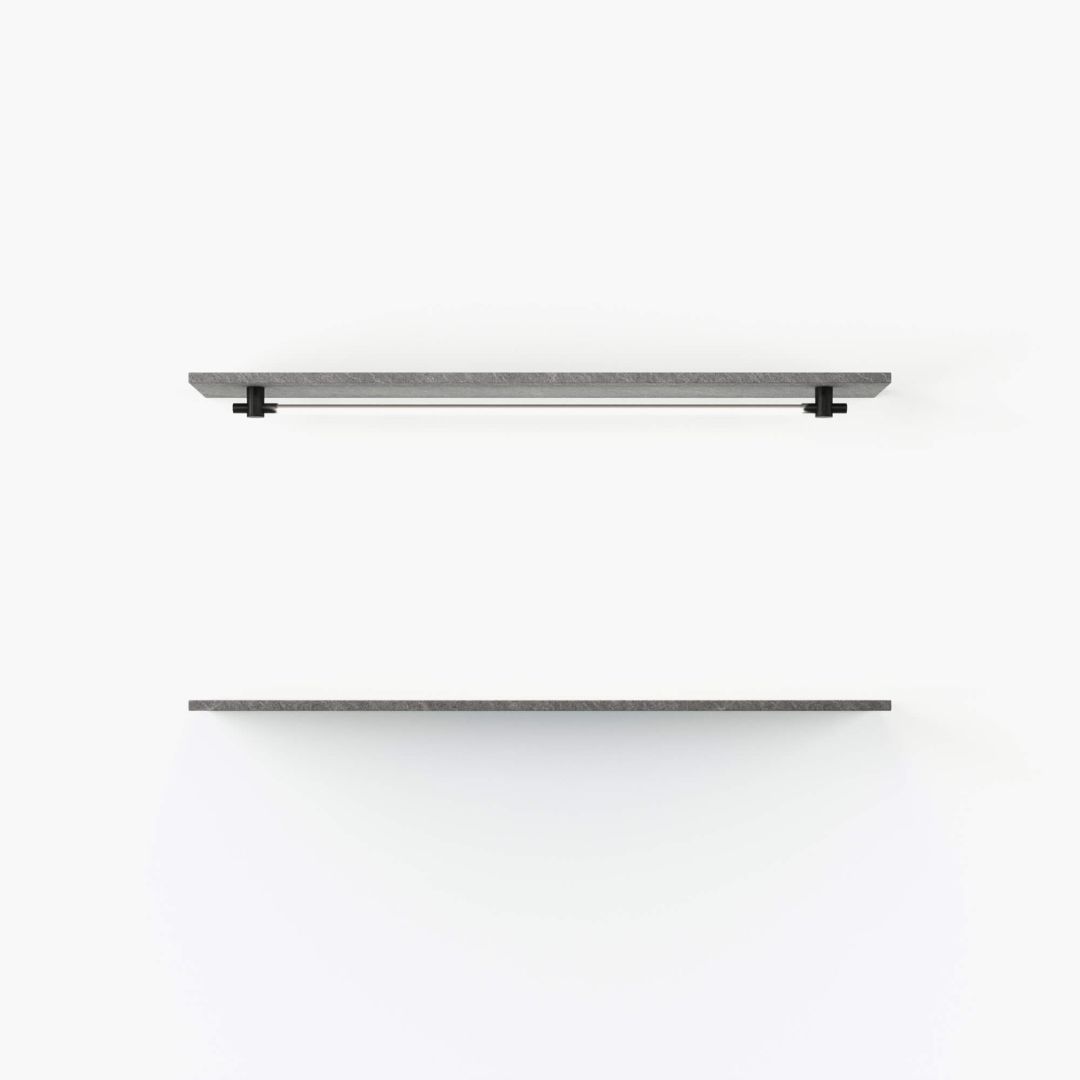

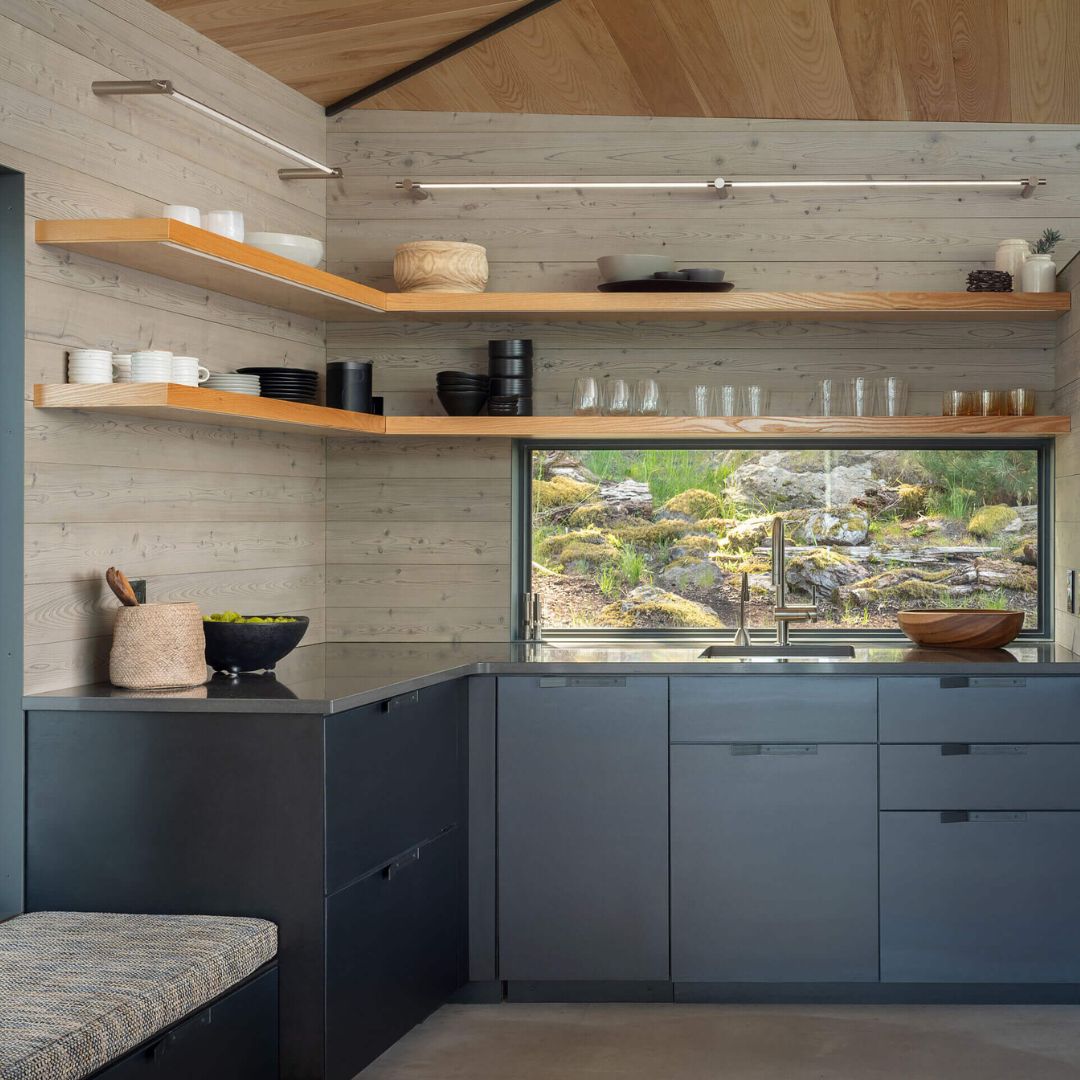

- Standoff distances from wall are ideal for applications such as undercabinet lighting, vanity/display lighting, and picture lighting
Downloads
System Guide
The ultimate resource for gaining a deeper understanding of the system, complete with detailed technical specifications.
Installation Guides
A detailed resource for proper installation and setup of THIN System to ensure optimal performance.
Product Files
Revit and STEP files are available to integrate precise lighting models into your designs.
IES Files
Photometric data essential for accurate lighting simulations.
