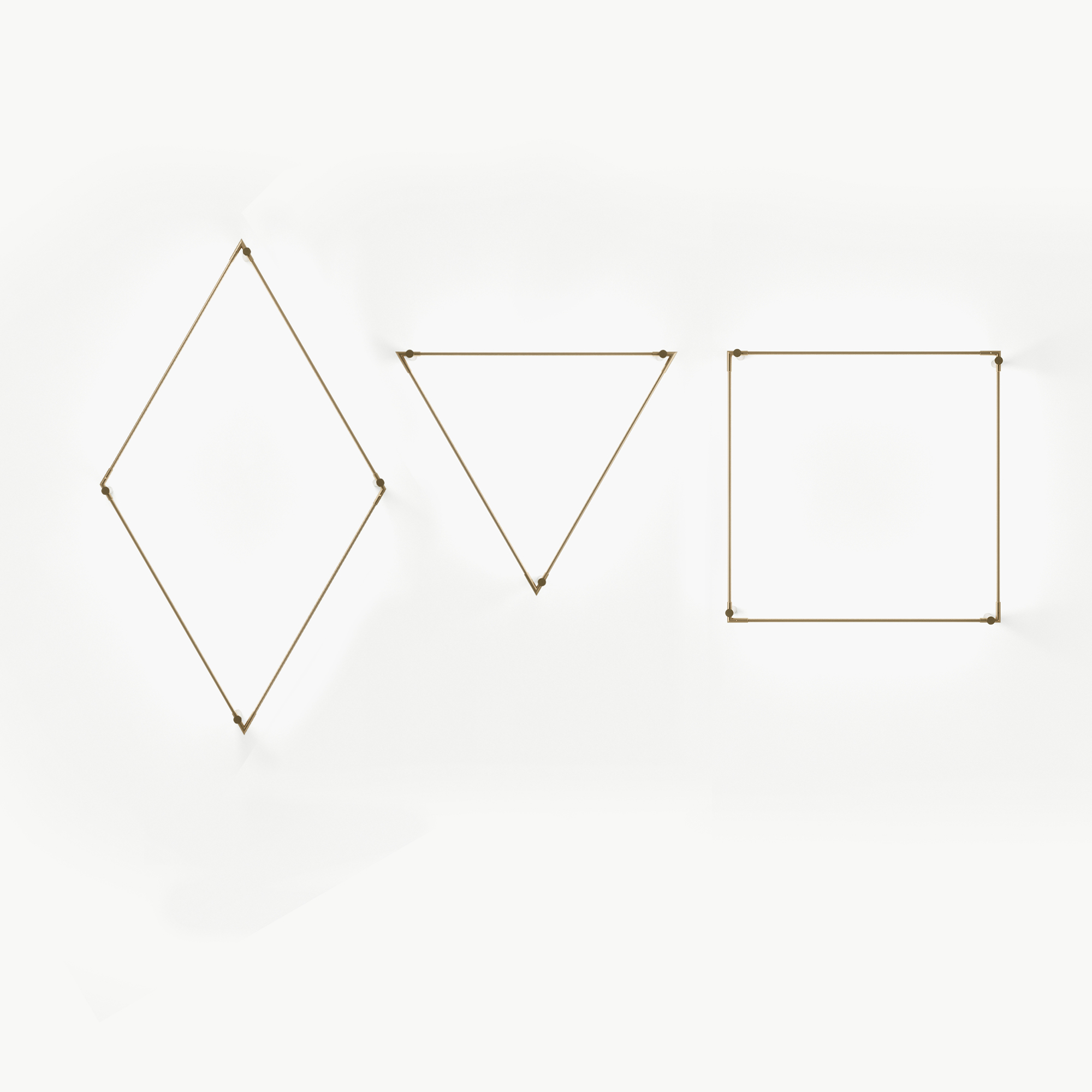

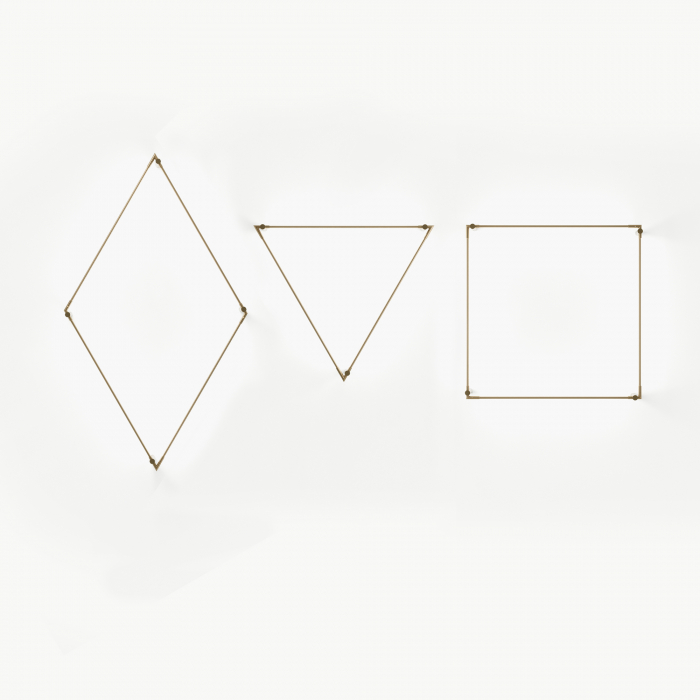

THIN Primaries — Surface Mount. Triangle / Square / Rhombus

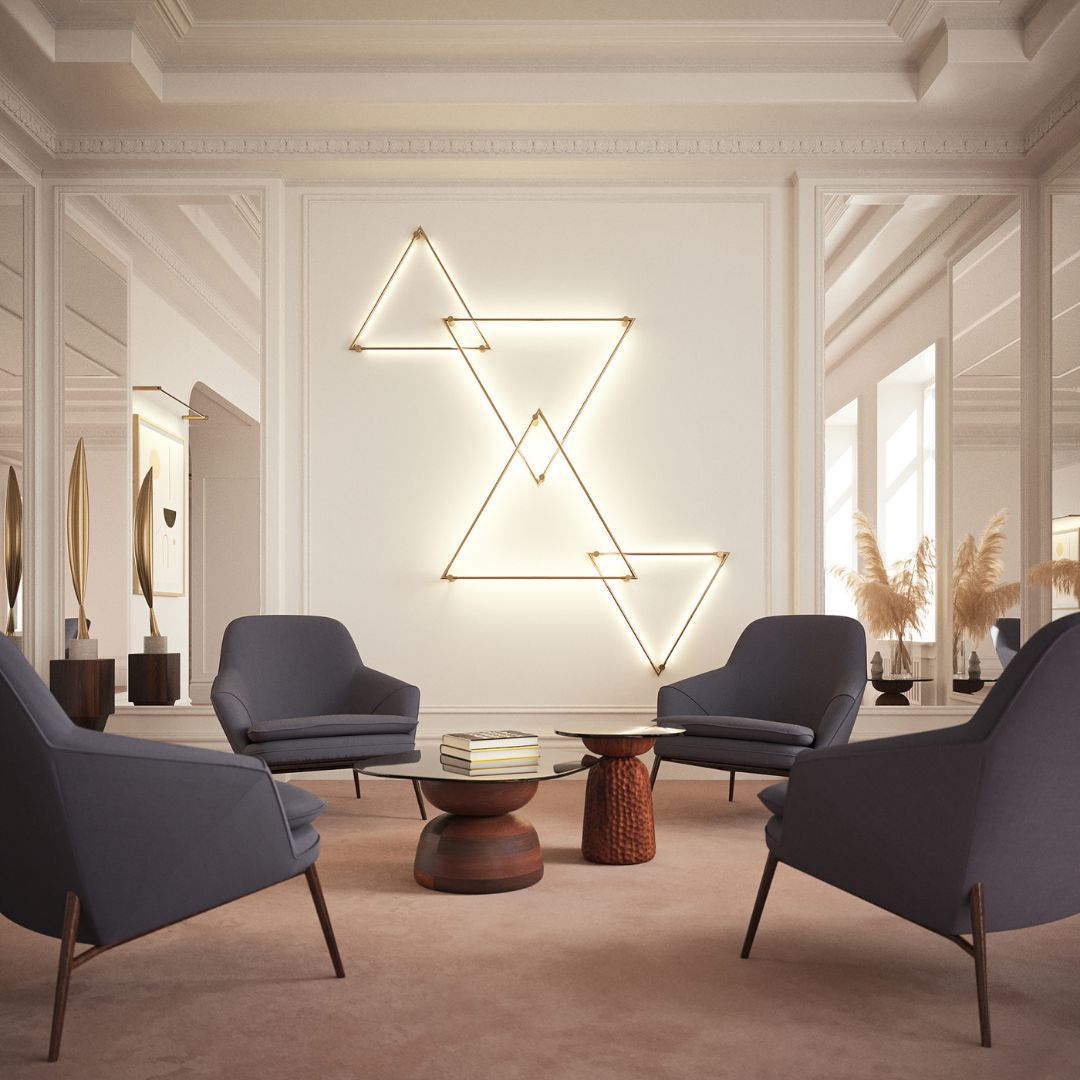

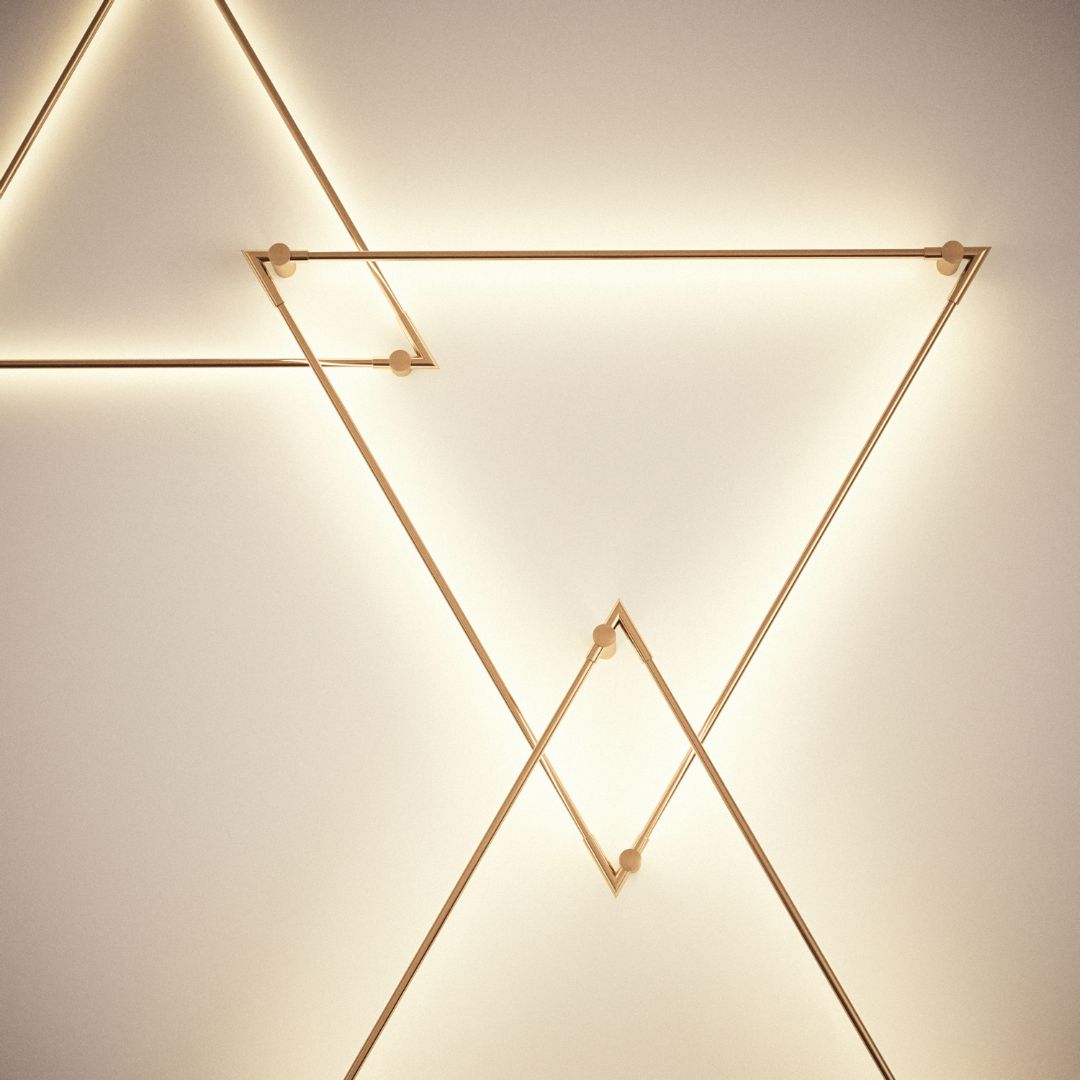

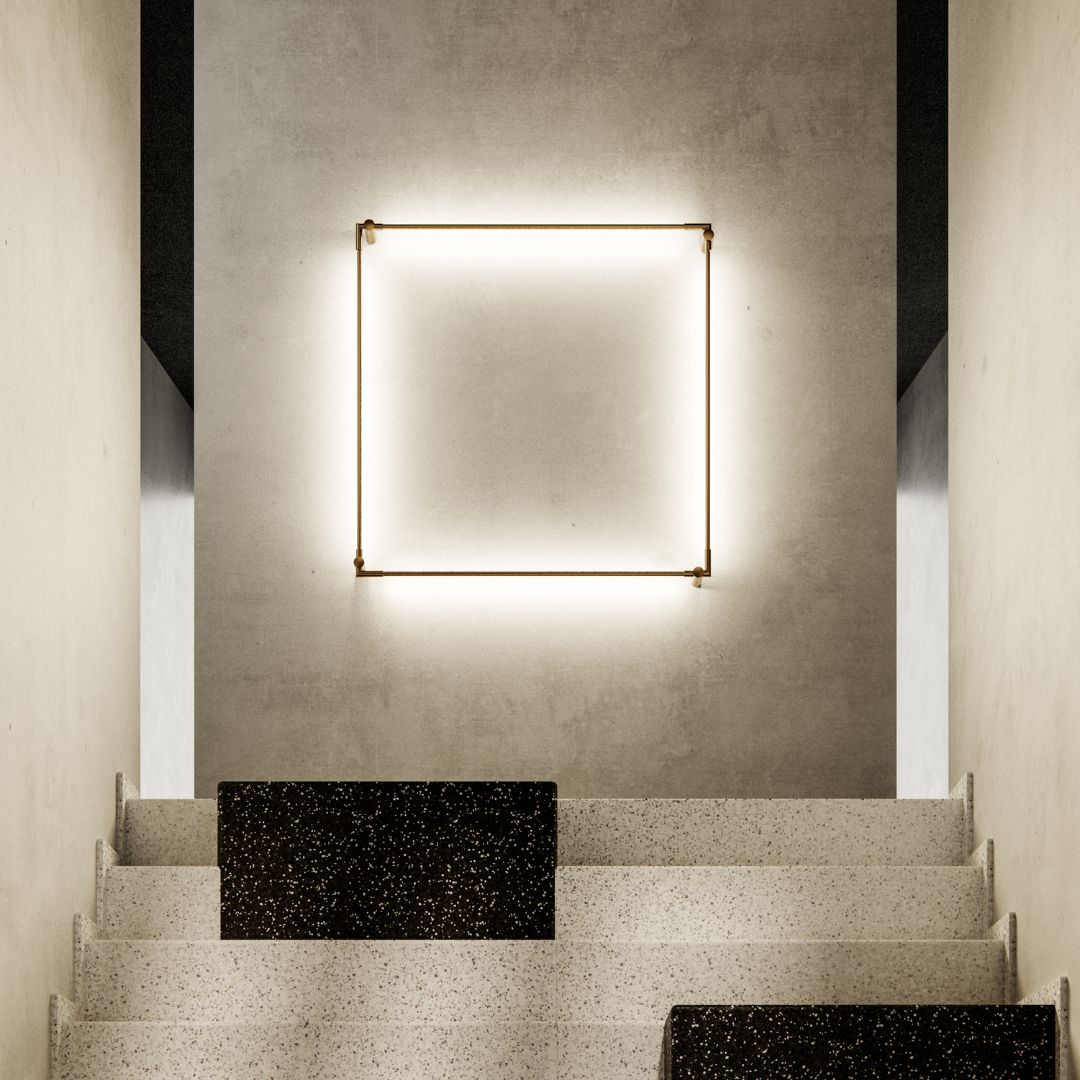

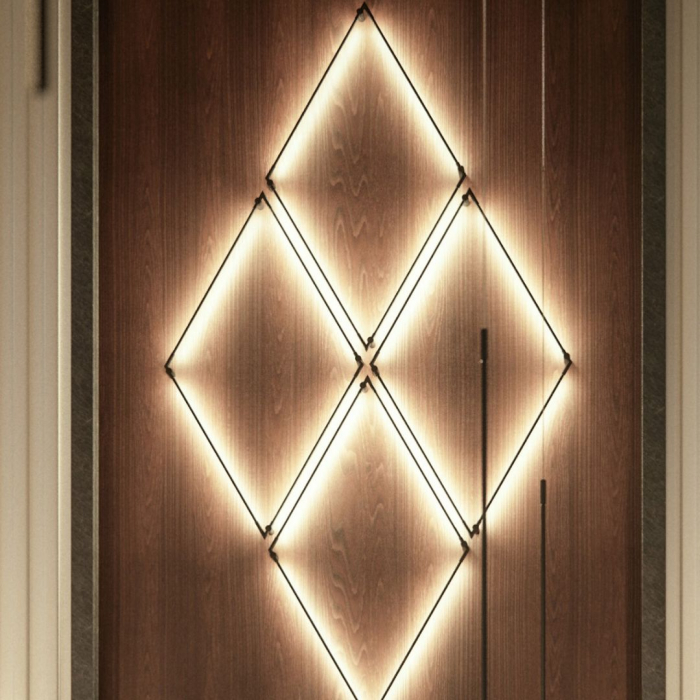

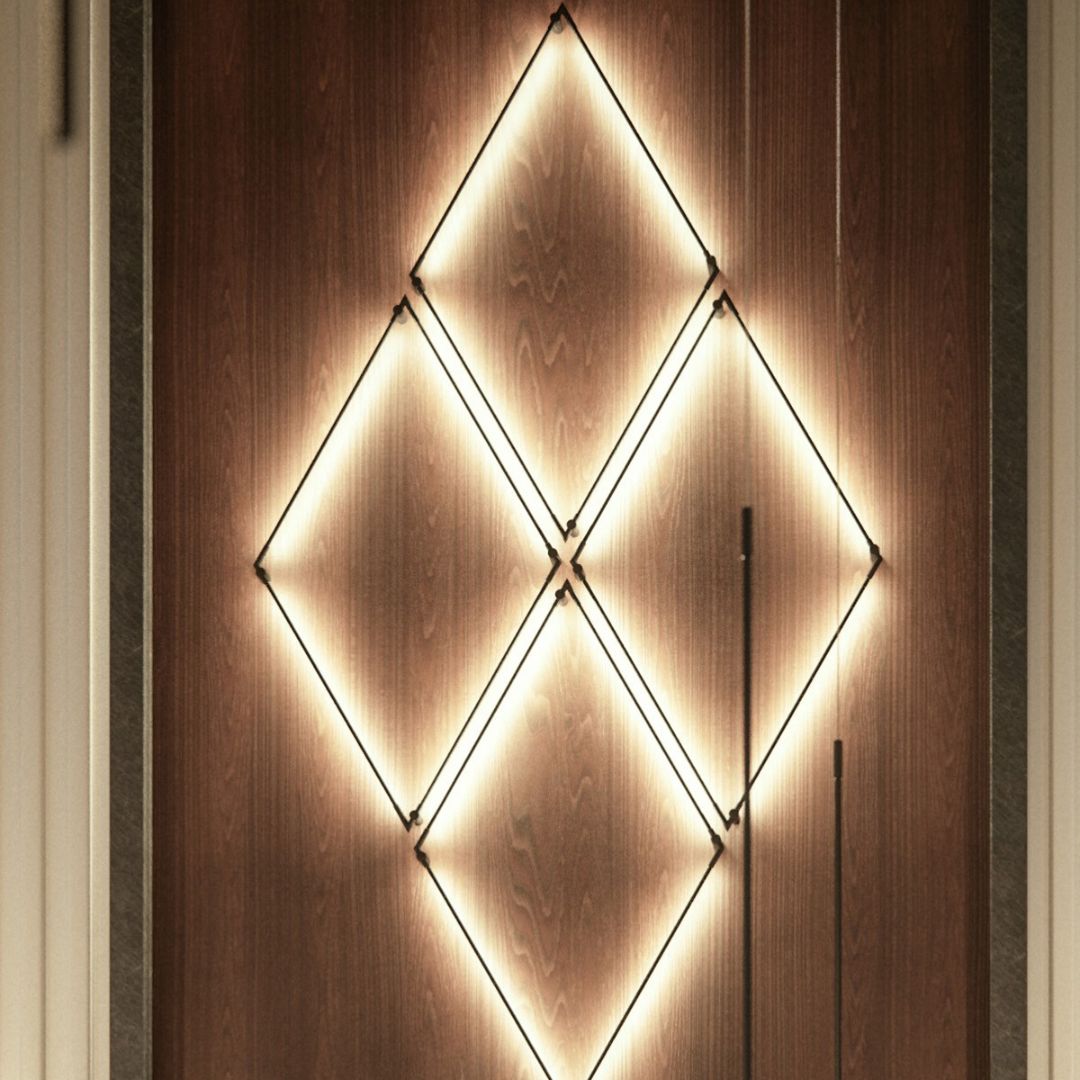

Light segments in various lengths can be mounted individually or to each other — using snap-in magnetic stand-off connectors — to create surface-mounted geometric fixture configurations
Up to 4 Week Lead Time*
* Lead time may be longer for larger quantities or custom finishes; contact us to confirm. Satin Nickel finish is always up to 8 weeks, regardless of product or quantity.
* Lead time may be longer for larger quantities or custom finishes; contact us to confirm. Satin Nickel finish is always up to 8 weeks, regardless of product or quantity.
Online purchases include complimentary ground shipping within the United States.
Configurator Code:
JPR-THEW------------------------
Specifications
- Segments can individually rotate 360°
- 24 VDC output Class 2 constant voltage power supply
- 120–277 VAC input voltage
- Dimming options: 2-Wire/TRIAC/Forward Phase; 0–10 V; 3-Wire
- CRI 95+
- R9 90+
- 90 LM/W delivered efficacy
- 300 LM per linear foot (maximum)
- Frosted lens with 90° beam spread
- Field-adjustable aircraft cables and clear-jacketed co-axial silver cord
- Direct-mount to ceiling
Downloads
System Guide
The ultimate resource for gaining a deeper understanding of the system, complete with detailed technical specifications.
Installation Guides
A detailed resource for proper installation and setup of THIN System to ensure optimal performance.
Product Files
Revit and STEP files are available to integrate precise lighting models into your designs.
IES Files
Photometric data essential for accurate lighting simulations.
