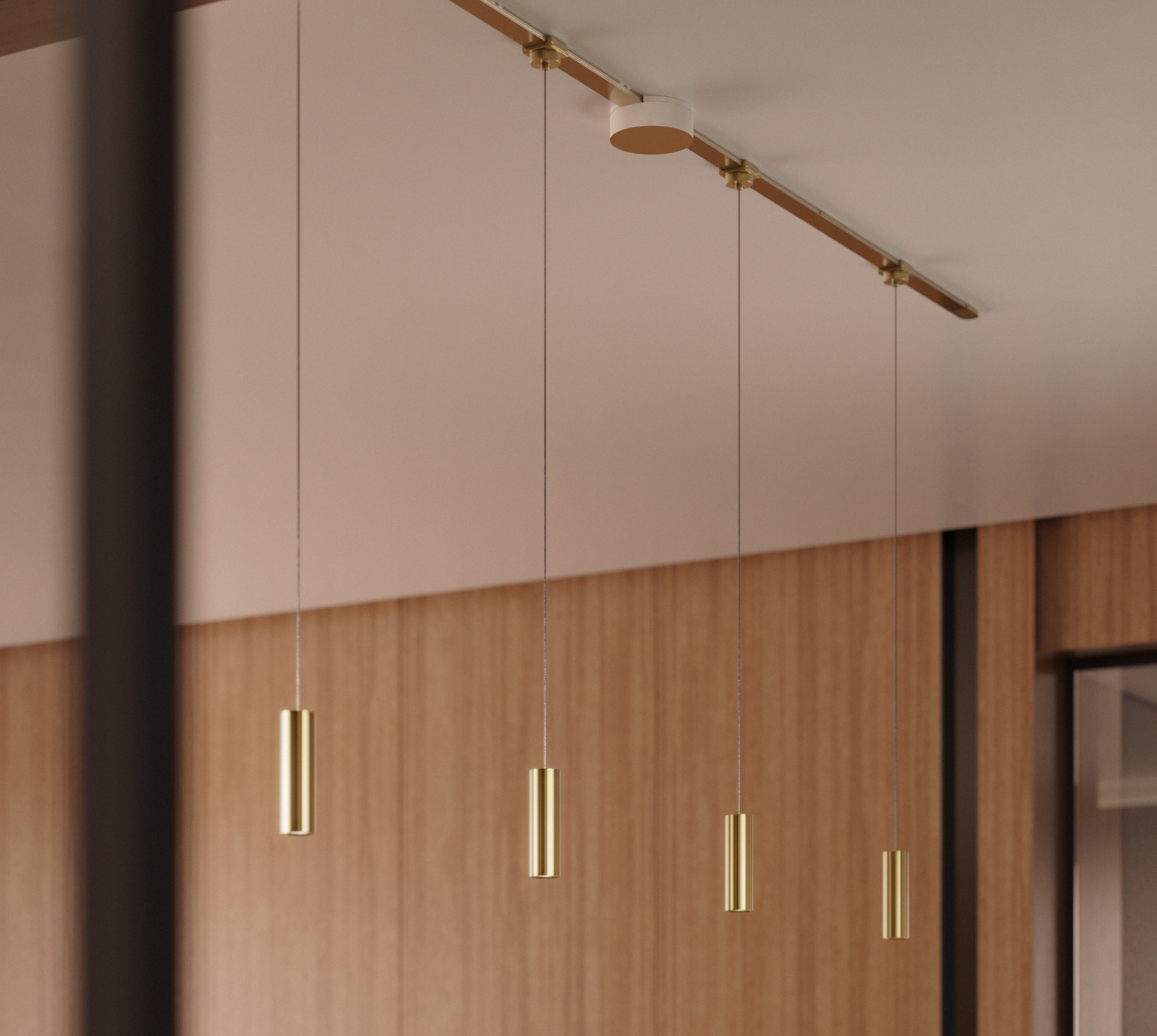

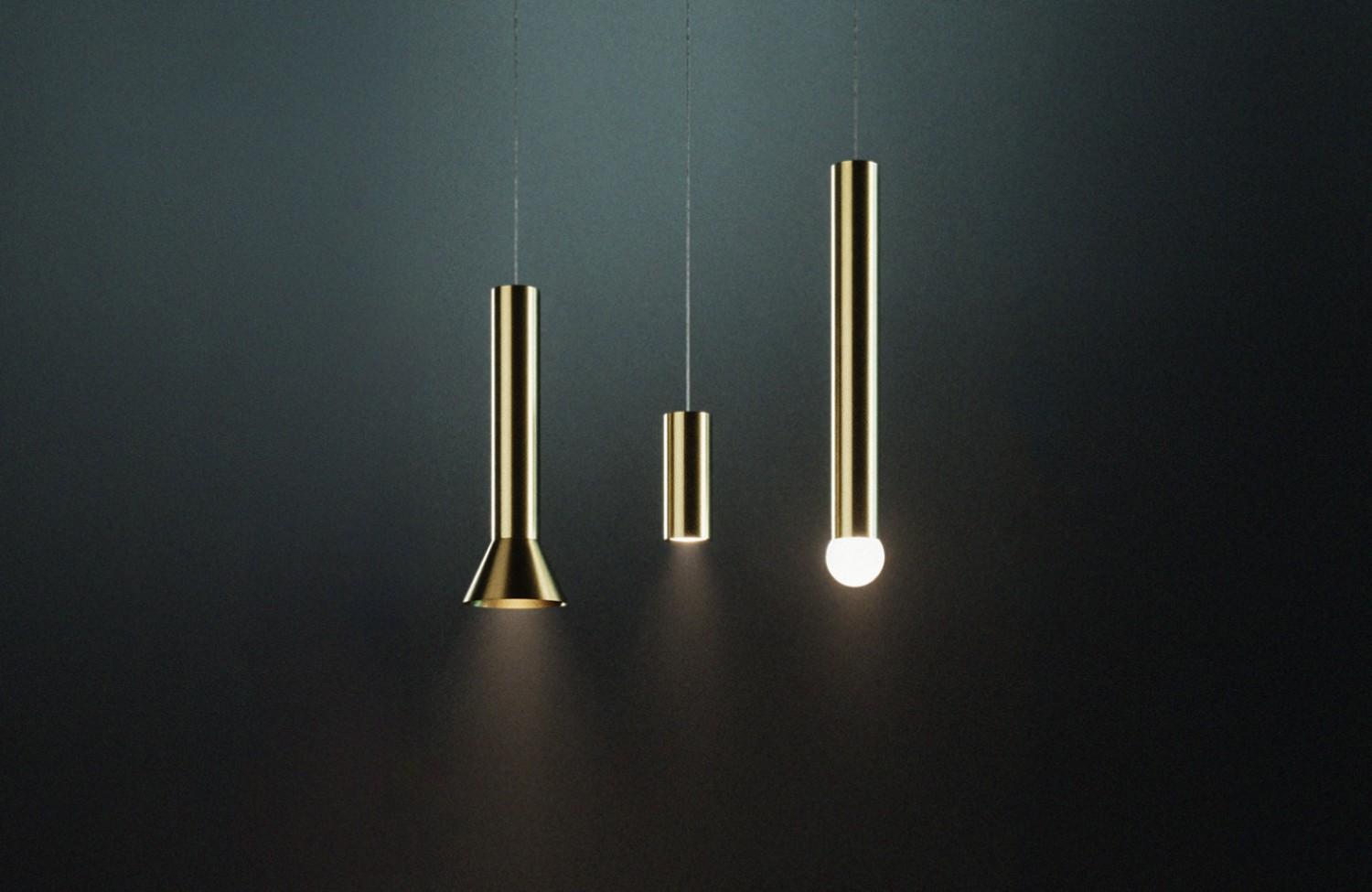

Juniper Cylinder
Juniper redefines a timeless silhouette with pendant and surface-mount options, paired with refined decorative trims.
Juniper Cylinder
Juniper redefines a timeless silhouette with pendant and surface-mount options, paired with refined decorative trims.
Shop Now
Cylinder System Families

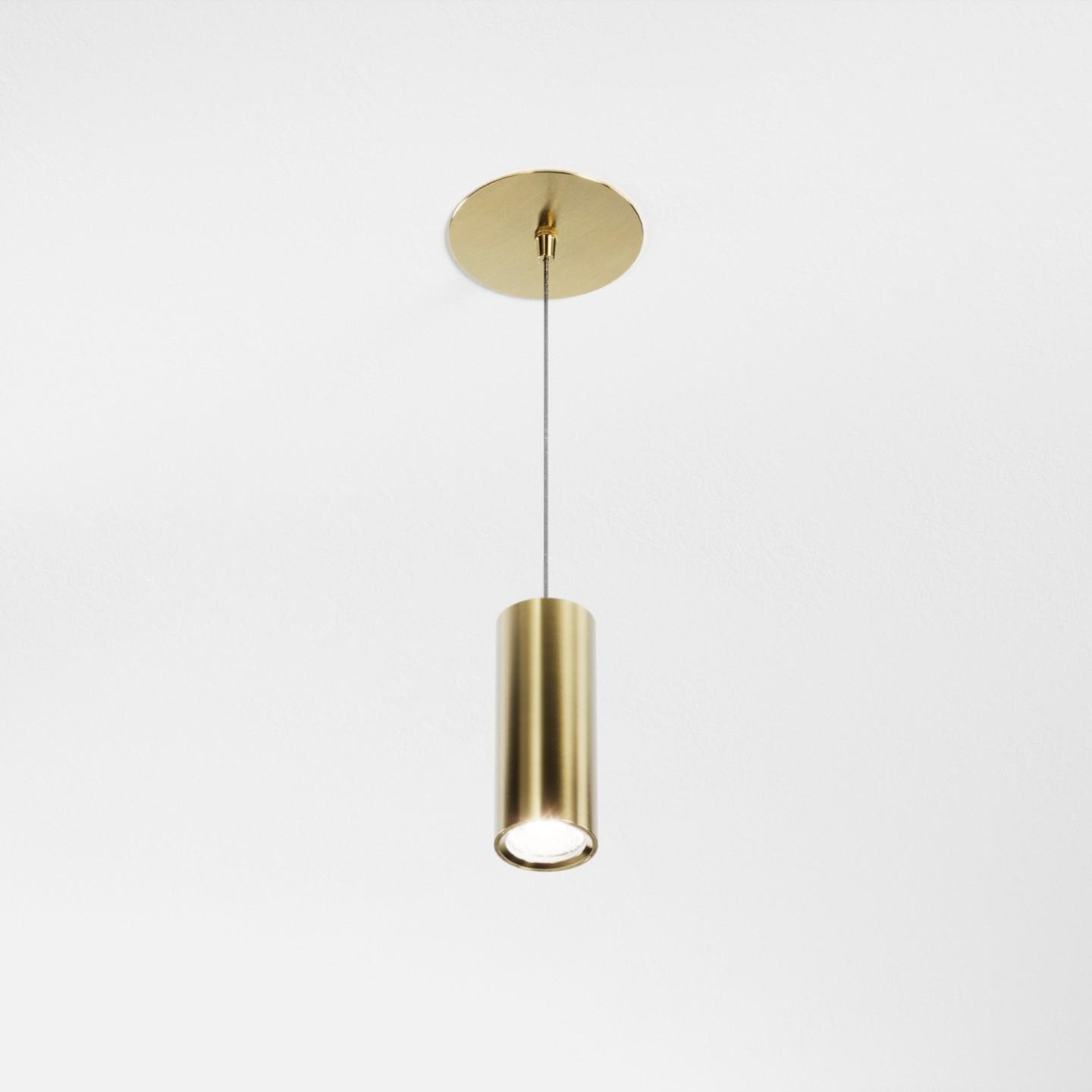

Juniper Cylinder Pendant Surface-Mount

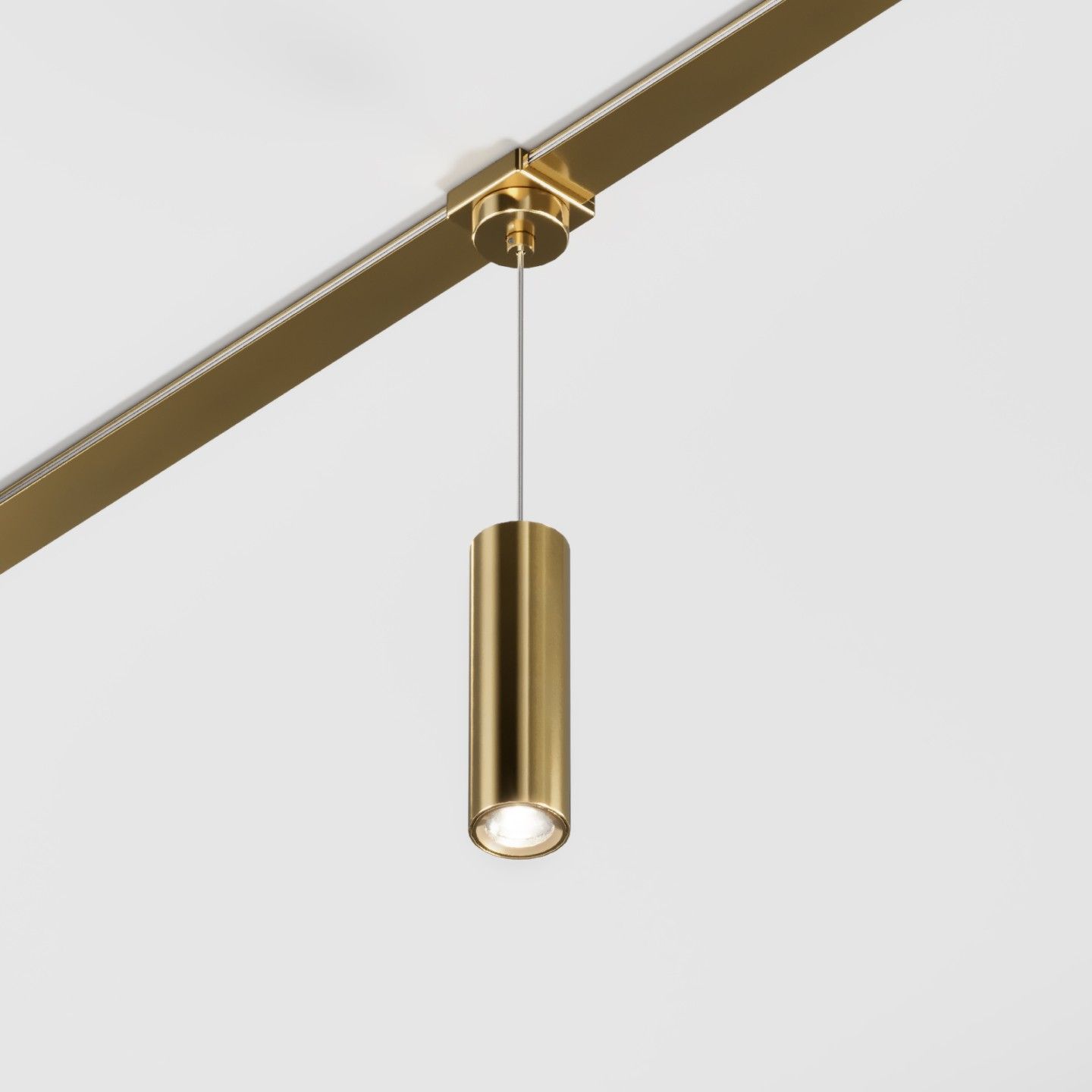

Juniper Cylinder Ribbon-Mount

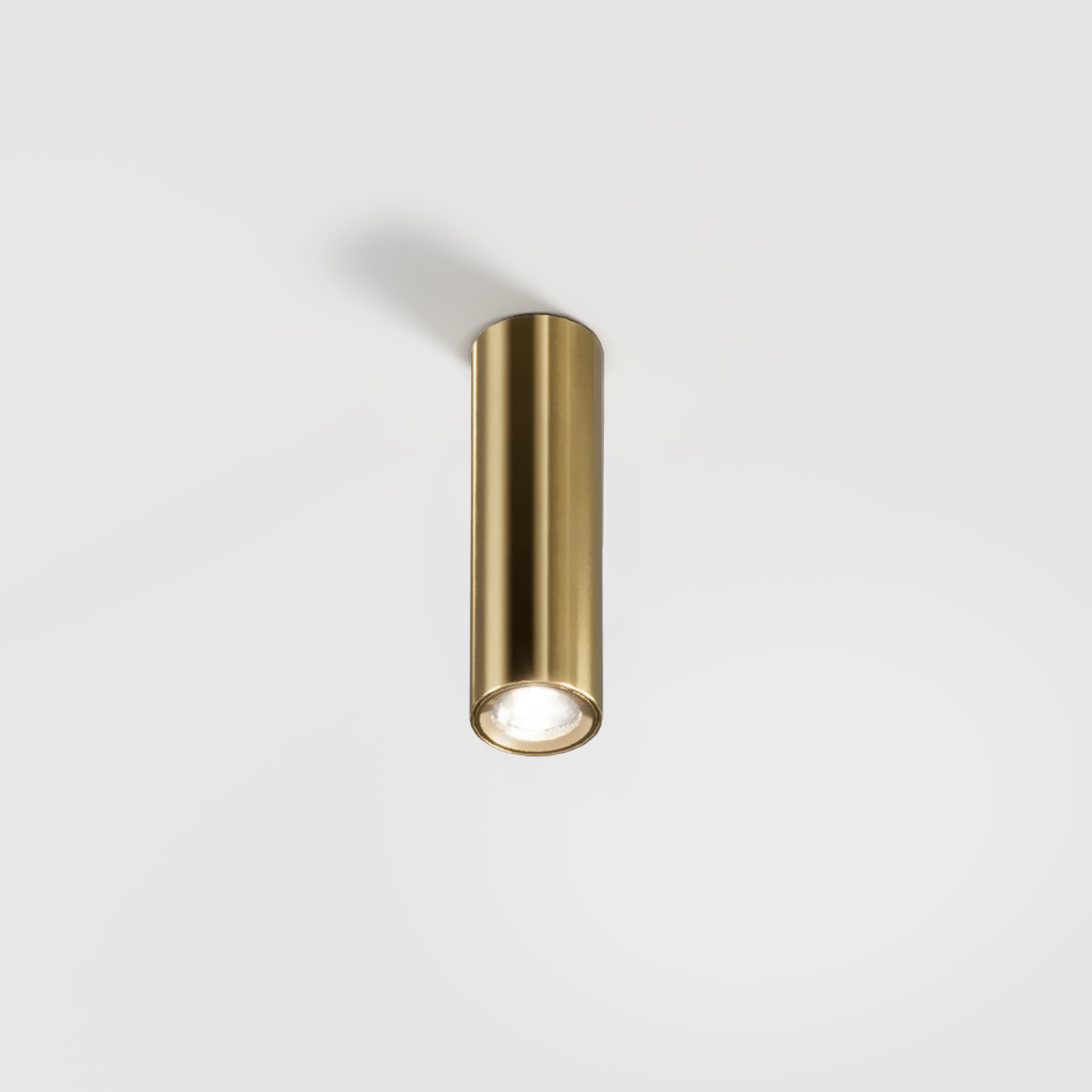

Juniper Cylinder Direct Surface-Mount
Compatible with the Multiverse System
With a range of mounting options—including direct-to-surface, integral power, and two Multiverse® configurations—Juniper Cylinders offer versatility.
Enhanced Aesthetics

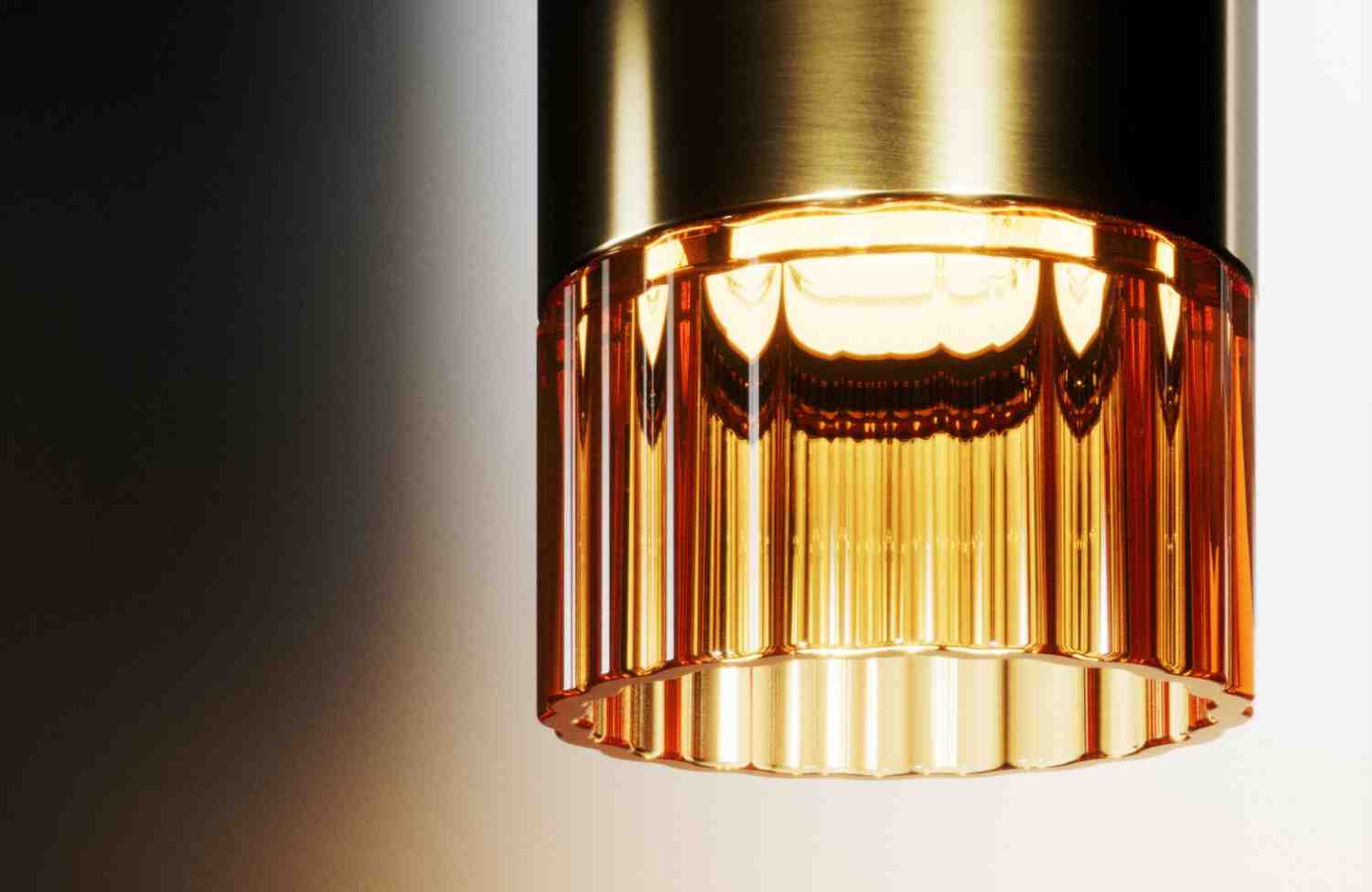

Decorative Trims
Textured trims add a touch of detail to architectural spaces.

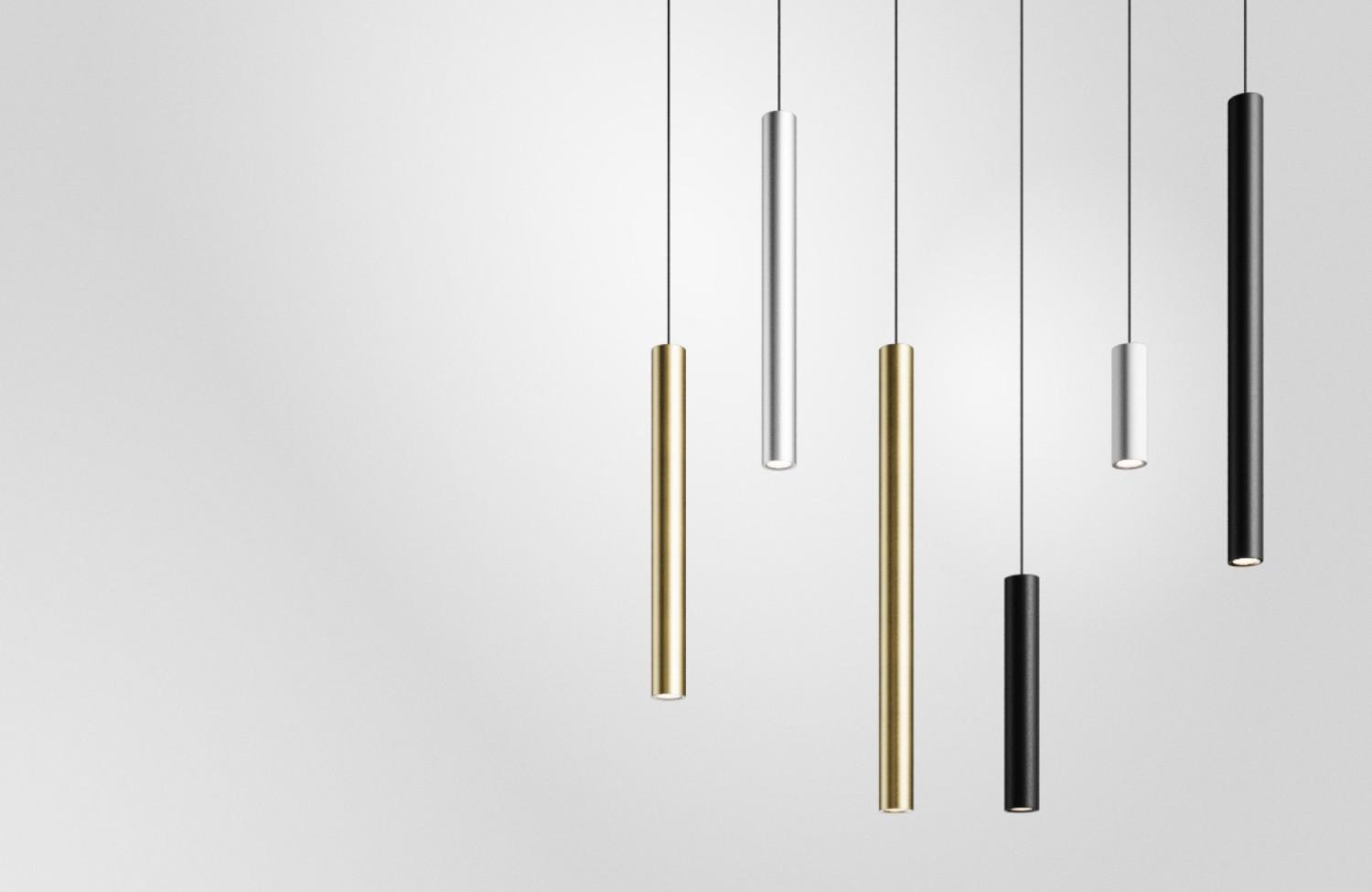

Premium Finishes
As part of the Multiverse family, the Juniper Cylinders are available in a wide range of exceptional finishes. Advanced digital-color matching at Connecticut factory can deliver lighting that complements any project.

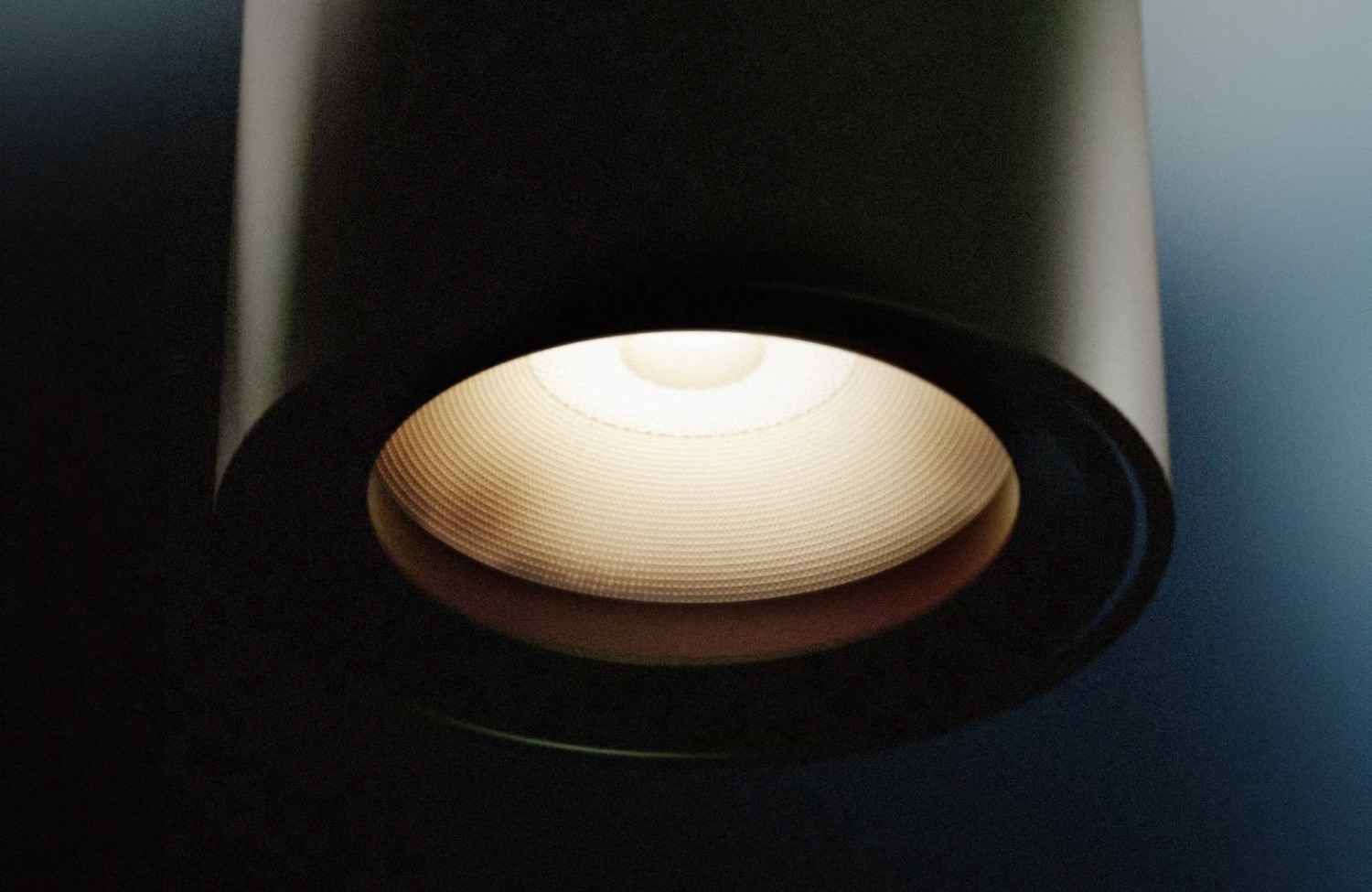

Unparalleled Light
Juniper Cylinders are equipped with field-interchangeable optics and accessories to meet the most demanding lighting applications.
Specifications
Powerful and Minimal
- 45 mm and 60 mm diameters
- 500 LM, 1000 LM, and 1500 LM delivered outputs
- Precision machined aluminum
Flexible Power Supply Options
- 24 VDC
- Remote and surface mounted options available for virtually any installation condition
Simple Installation
- 5” canopy mount to any standard junction box
- Juniper mini -canopy for ultra -minimal installation
- Ribbon mount in pendant and direct for Multiverse integration
Exacting Optics
- Field-replaceable beam angles — narrow, medium, wide, and extra -wide
- A range of optical accessories — softening lens, hex louver — for on -site adjustment
Luminaire Finishes
- High performance coatings
- Matte Pure White, Matte Black, Satin Aluminum, Satin Brass, Custom colors available for any project
Superior Light Quality
- 95+ CRI standard 85 LM/Watt delivered average
- Flicker free dimming to 0.1%
Color Temperature
- 2700 K, 3000 K, 3500 K, 4000 K
Downloads
Resources
System Guide
The ultimate resource for gaining a deeper understanding of the system, complete with detailed technical specifications.
Installation Guides
A detailed resource for proper installation and setup of Juniper Cylinders to ensure optimal performance.
