Metropolis System
Metropolis System
Shop Now
Metropolis System Families

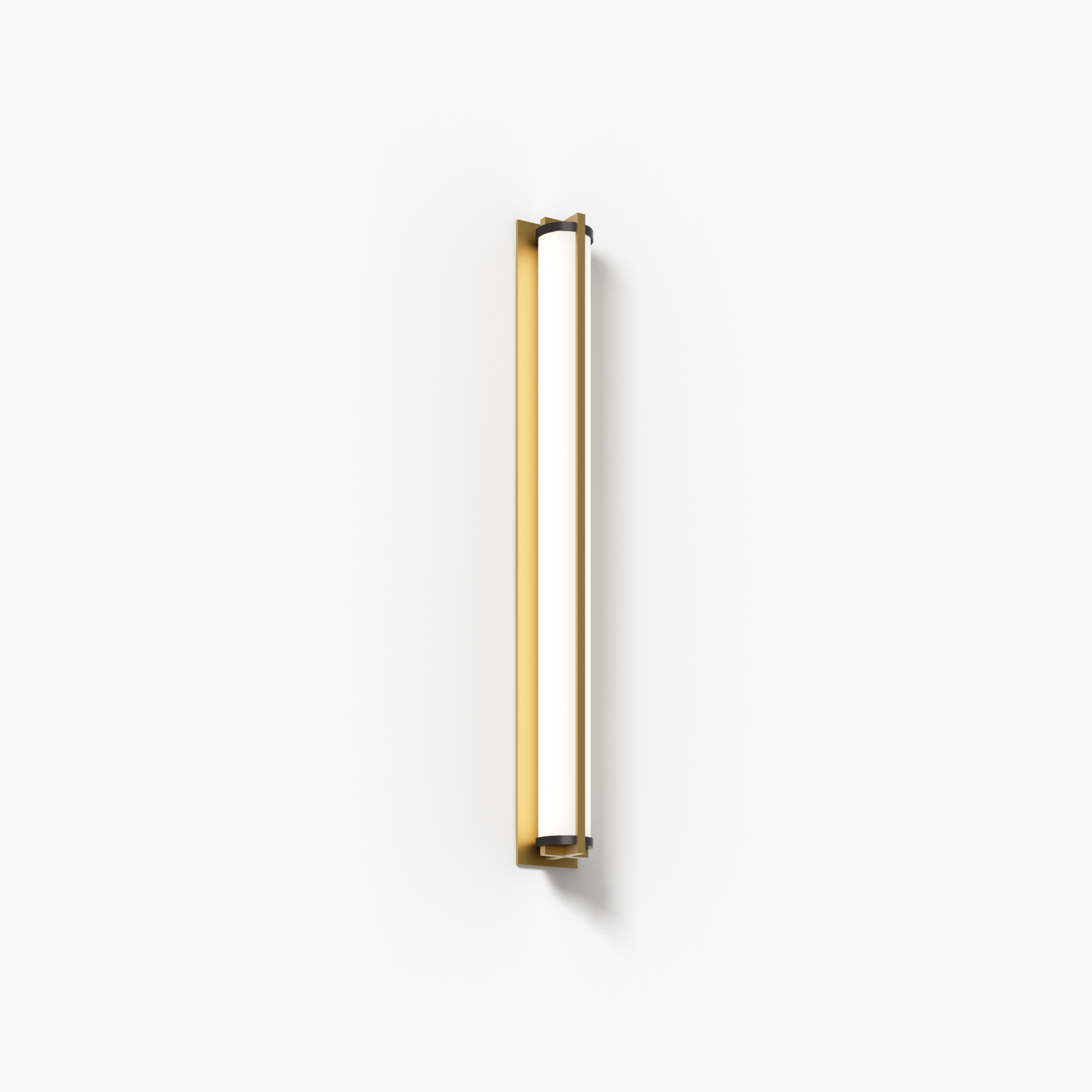

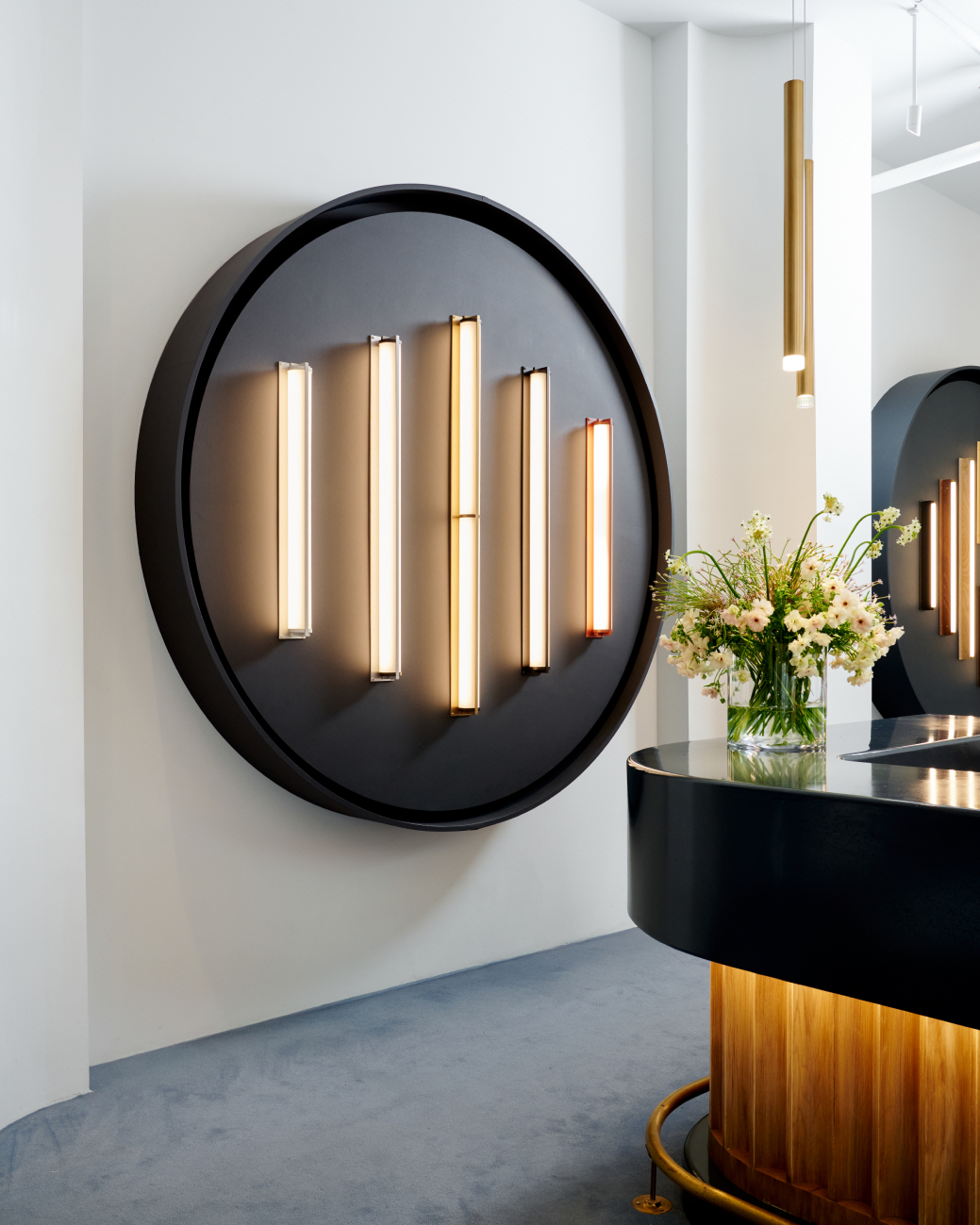

Metropolis Wall Sconce

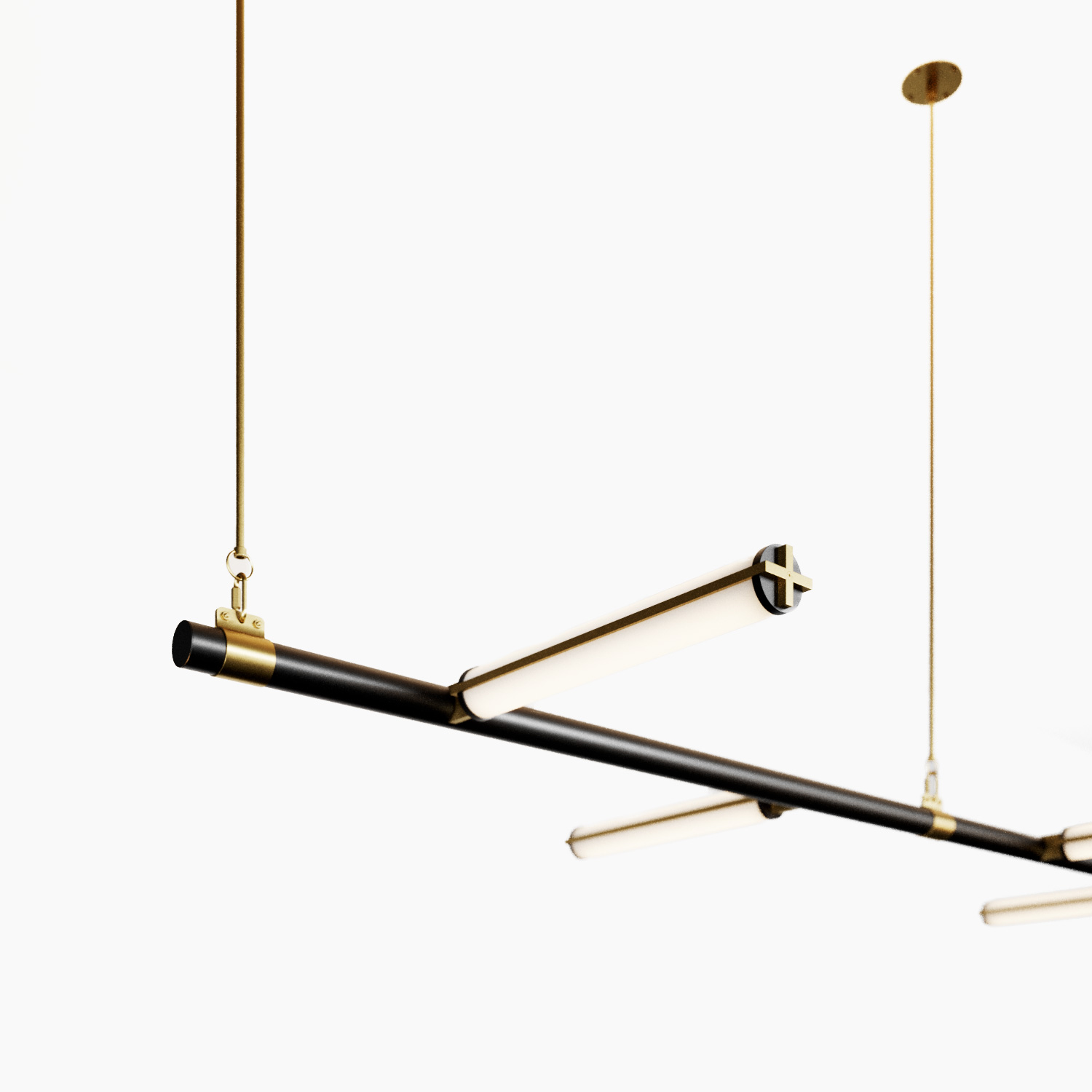

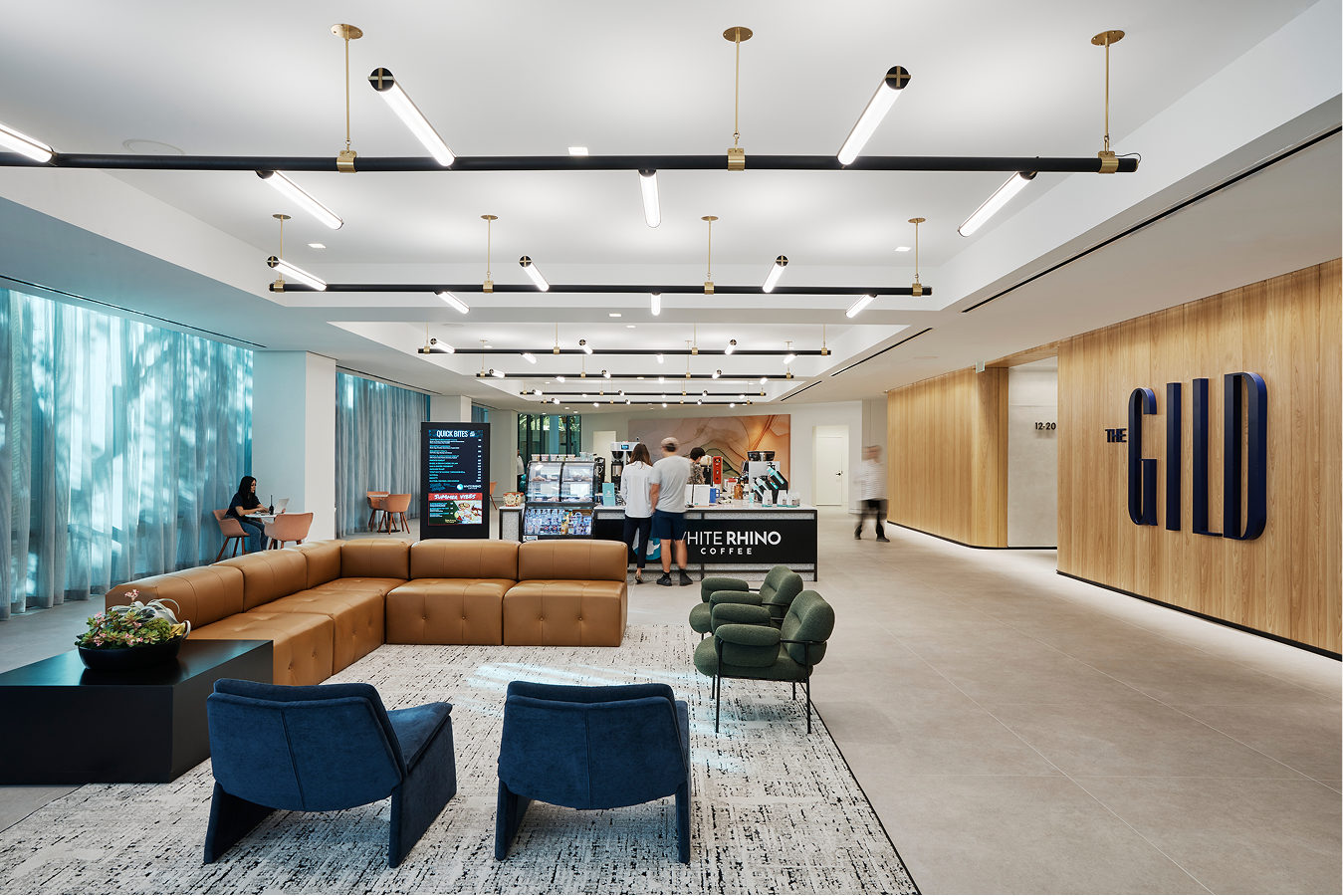

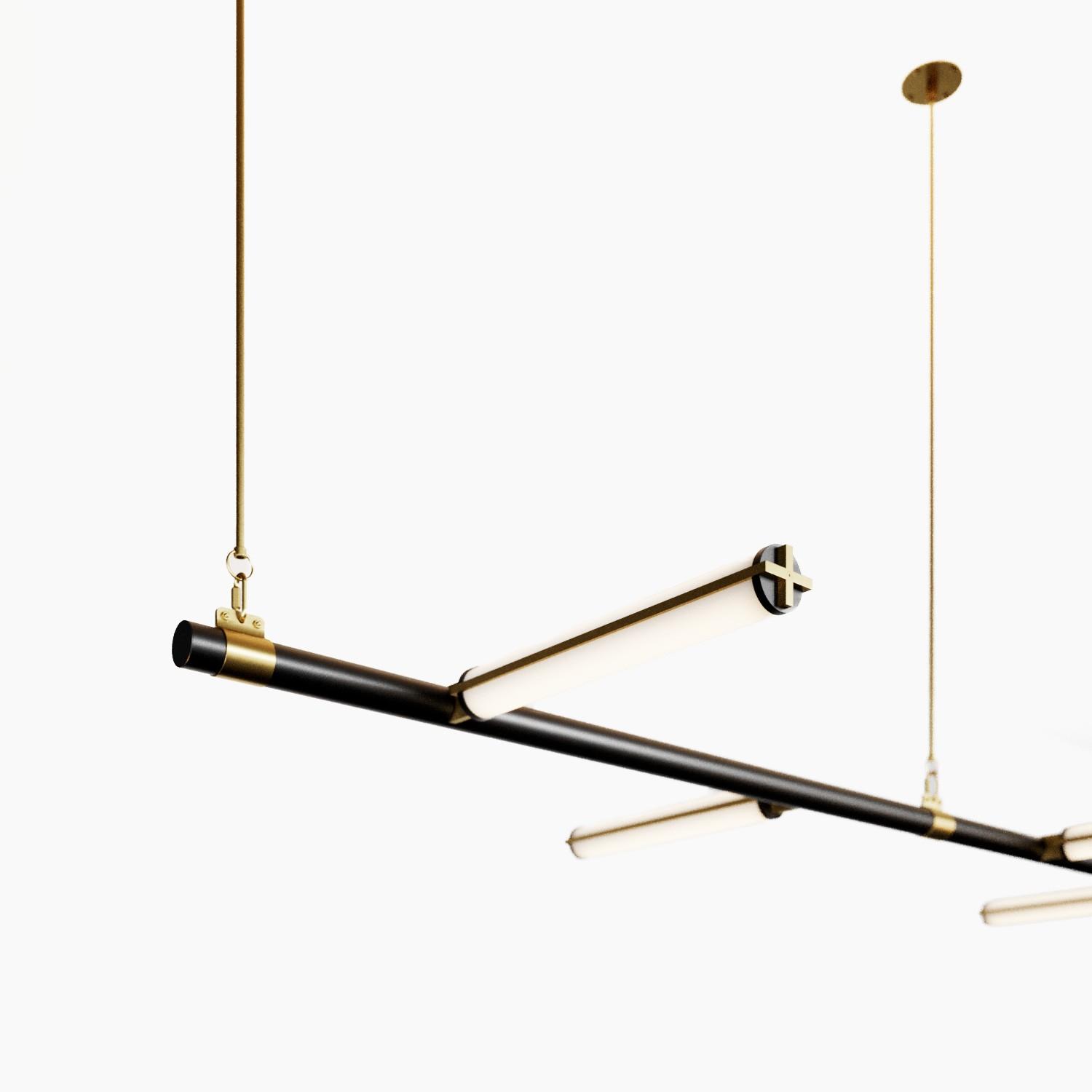

Metropolis Modular Suspension

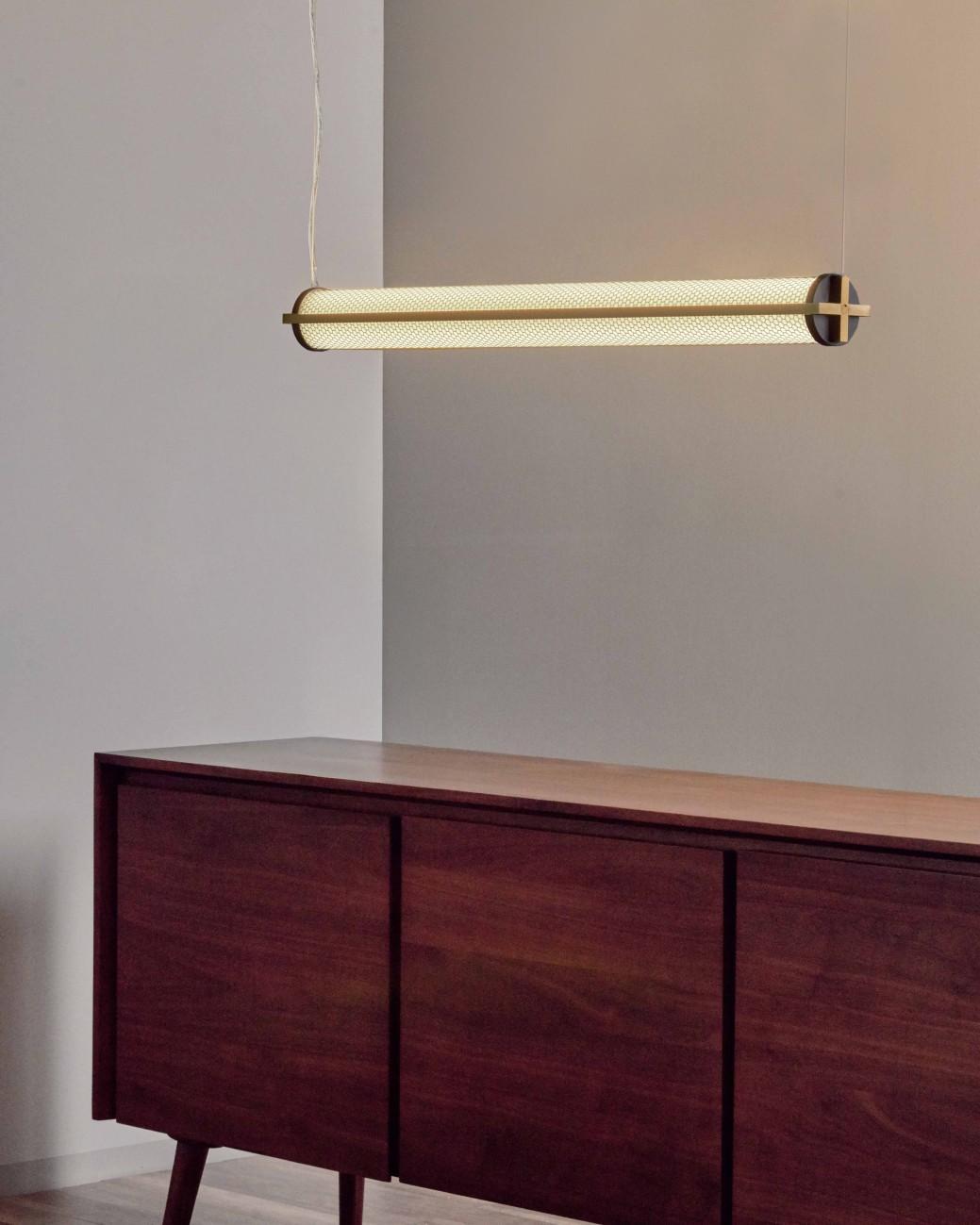

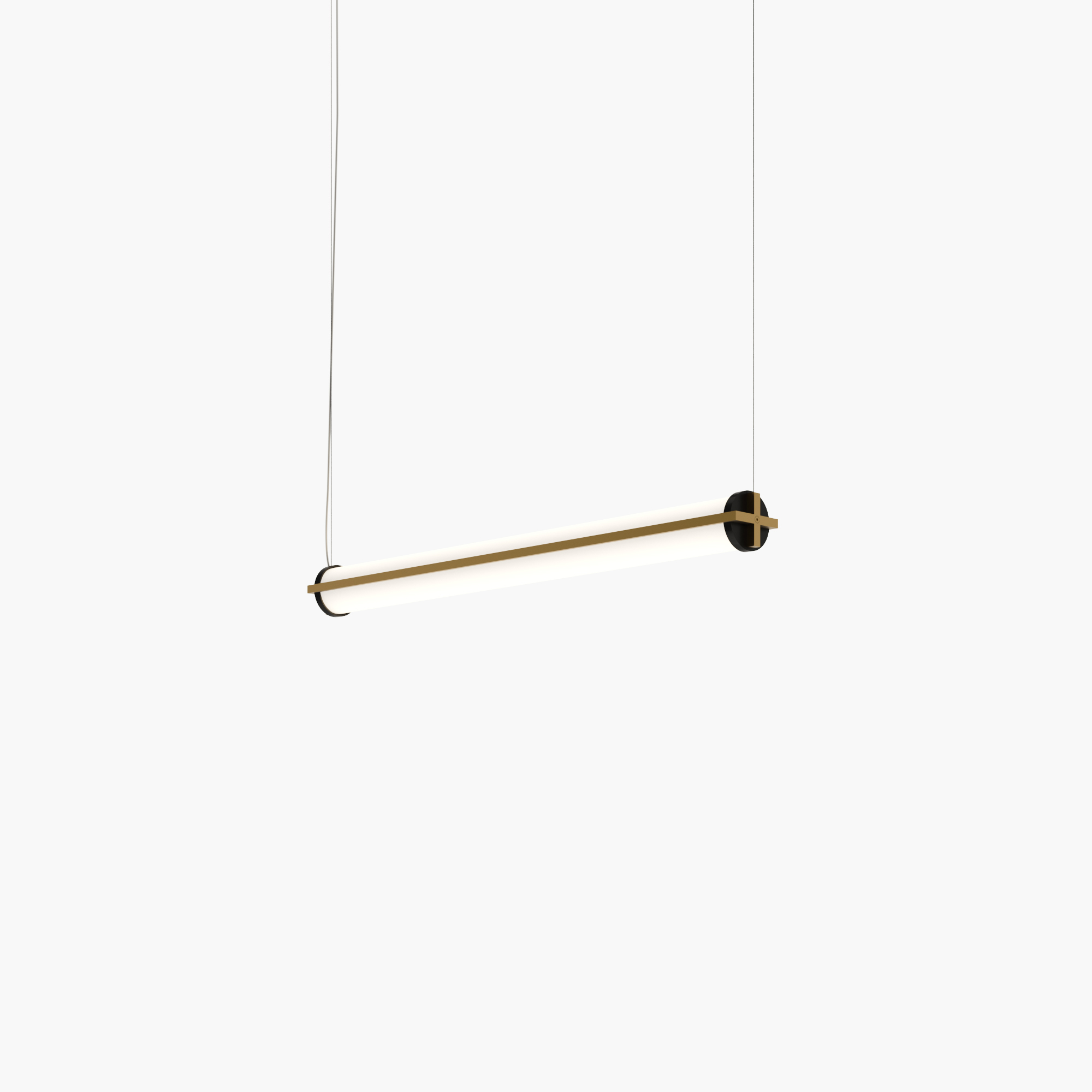

Metropolis Suspension
Designed for Large Spaces
Field-Adjustable Sections
Field-cuttable suspension tube sections allow on-site adjustment to spaces of varying sizes, while color-coded conductors and leveling screws support clean alignment and efficient installation.
Materials & Finishes
An optional black mesh diffuser softens light at the source, reducing glare while maintaining a clear, architectural light profile.
Specifications
Material Palette
- High performance coatings
- Satin Brass, Satin Aluminum, Polished Aluminum, Satin Black
Color Temperatures
- 2700 K, 3000K, 3500K, 4000K
Light Output & Quality
-
High-output LED modules
-
26″ module: 4,000 lumens
-
36″ module: 6,100 lumens
-
Delivered efficacy: up to 110 lm/W
-
Color quality: CRI 95+, R9 90+
Construction
-
Machined from solid aluminum
-
Optional decorative black mesh diffuser for glare control
-
Solid brass hardware with aluminum body components
Power & Dimming
-
24 VDC Class 2 constant-voltage system
-
Input voltage: 120–277 VAC
-
Dimming: TRIAC, ELV, or 0–10 V
-
Unison or independent direct/indirect control
-
Remote or local power supply options
Configuration & Installation
-
Modular 6 ft sections with integrated light modules
-
Wall-to-wall, suspension-to-suspension, wall-to-suspension configurations
-
Field-cuttable tube sections for precise on-site adjustment
-
Field-adjustable aircraft cables (suspension)
Downloads
Resources
Pricing Guide
Our MAP Pricing, before applicable project discounts, can be downloaded here. It represents the maximum that our product should cost.
System Guide
The ultimate resource for gaining a deeper understanding of the system, complete with detailed technical specifications.
Installation Guides
A detailed resource for proper installation and setup of Juniper Cylinders to ensure optimal performance.
