Direct-Indirect Linear Suspensions — T

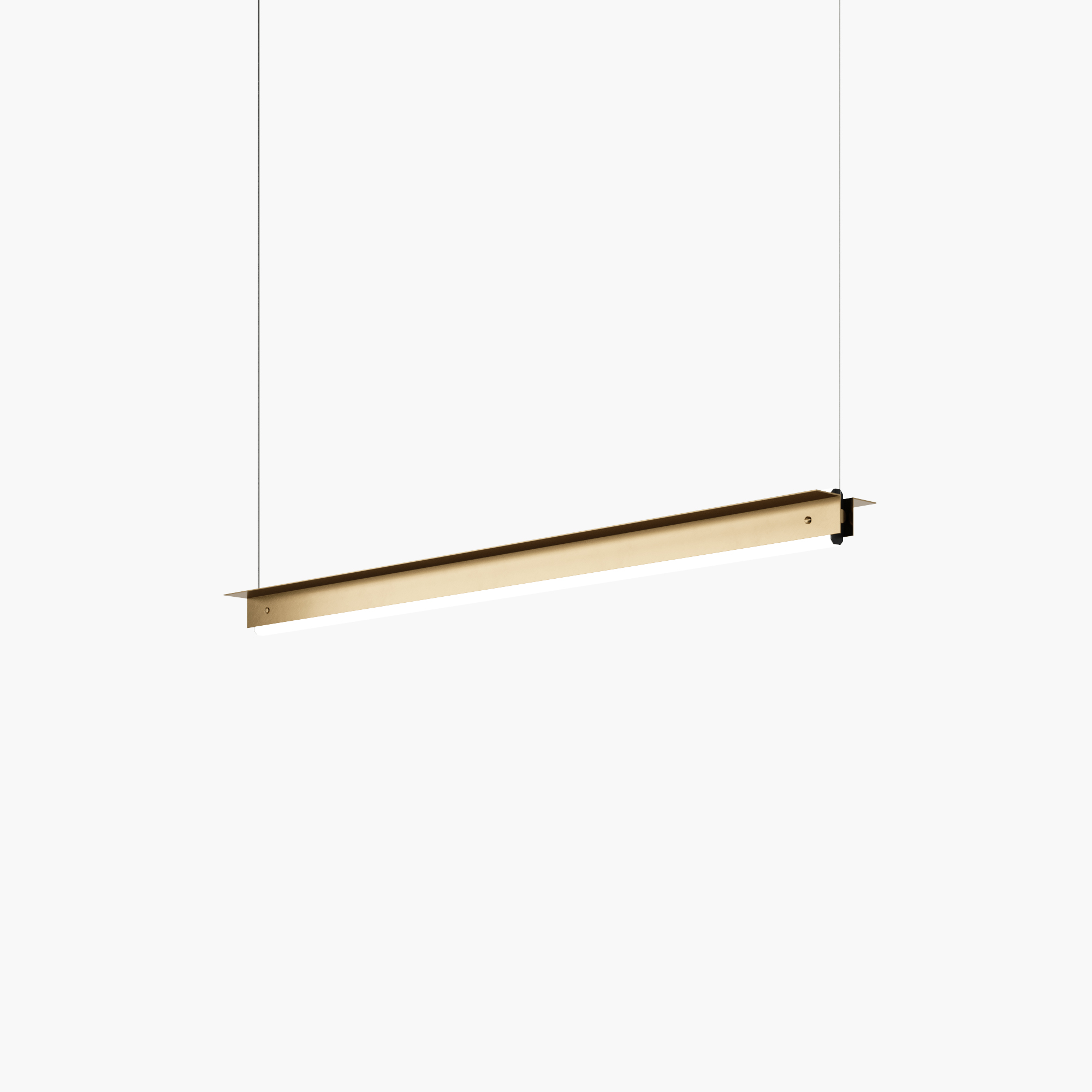

The Direct-Indirect Linear Suspensions — T draws inspiration from the extruded angles, channels, and tees that proliferated during the 19th-century industrial movement. The fixture’s T-shaped silhouette is created by two bronze extruded angles. Central LED light arrays illuminate down the channel through a faceted acrylic lens to diffuse light. Casting light both above and below the fixture, light arrays can be powered together or separately to control direct and indirect lighting needs.
Custom Color Options: Finishes may be specified from any standard color system (e.g., RAL, Benjamin Moore, Pantone). Once the order is placed, you will receive an email from our sales team to confirm the desired reference. Lot charges apply.
3 Week Typical Lead Time*
*Lead time subject to change based on order and stock quantities.
Pricing applicable to United States and Canada only.
Shipping not included for Alaska, Hawaii, and Canada.
Specifications
- Linear suspended pendant in 12–48″ lengths
- Extruded brass, aluminum, and hardwood finishes radiating from a central channel
- Dual linear arrays provide optional independent direct and
indirect illumination - 24 VDC output Class 2 constant voltage power supply
- 120–277 VAC input voltage
- Dimming options: Forward Phase (TRIAC), Reverse Phase
(ELV), or 0–10 V - Field-adjustable aircraft cables with clear-jacketed co-axial
silver cord - Adjustable suspension length up to 115″
- Direct-mount to ceiling
- CRI 95+
- R9 90+
- 84 LM/W delivered efficacy
- 600 LM per linear foot (maximum)
- Faceted acrylic lens with 90° beam spread
Sub Specifications
Size
- Available lengths: 12″, 18″, 24″, 36″, and 48″
- Adjustable suspension length: up to 115″
Mounting & Suspension
- Direct ceiling mount
- Field-adjustable aircraft cables with clear-jacketed coaxial silver cord
Power & Dimming
- Power supply: 24V DC Class 2 constant voltage
- Input voltage: 120–277V
- Dimming: TRIAC, ELV, or 0–10V
Light Output & Quality
- Brightness: up to 600 lumens per linear foot
- Efficiency: 84 lumens per watt
- Beam spread: 90°
- Color quality: CRI 95+
- Strong reds: R9 90+
Finish & Materials
- Materials: extruded brass, aluminum, or hardwood
- Light radiates from a central channel
- Dual linear arrays enable independent direct and indirect illumination
- Lens: faceted acrylic
Downloads
System Guide
The ultimate resource for gaining a deeper understanding of the system, complete with detailed technical specifications.
Installation Guides
A detailed resource for proper installation and setup of Juniper Cylinders to ensure optimal performance.
