Metropolis Modular Suspension

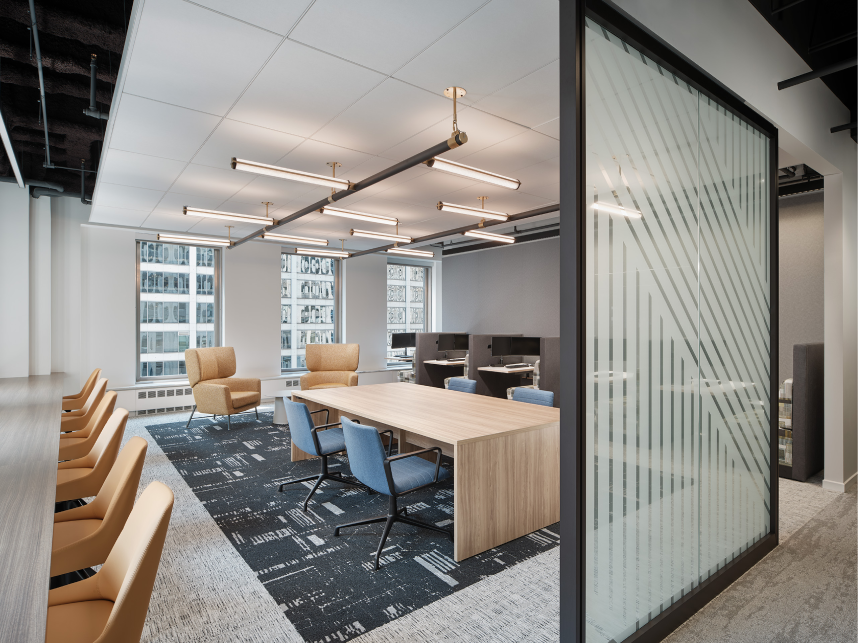

Designed by David Meckley, the Metropolis Modular Suspension spans the full length of any space with high-output cylindrical modules engineered to offer a powerhouse lighting solution for workspaces and hospitality settings. Top and bottom hemispheres of the LED modules can be independently dimmed for direct and indirect illumination, and can be diffused by an optional black mesh, signature to the Metropolis Collection.
4-6 Week Typical Lead Time*
*Lead time subject to change based on order and stock quantities.
Online purchases include complimentary ground shipping within the United States.
Configurator Code:
JPR-MTRO
Specifications
- Each modular 6 ft tube section includes two light modules

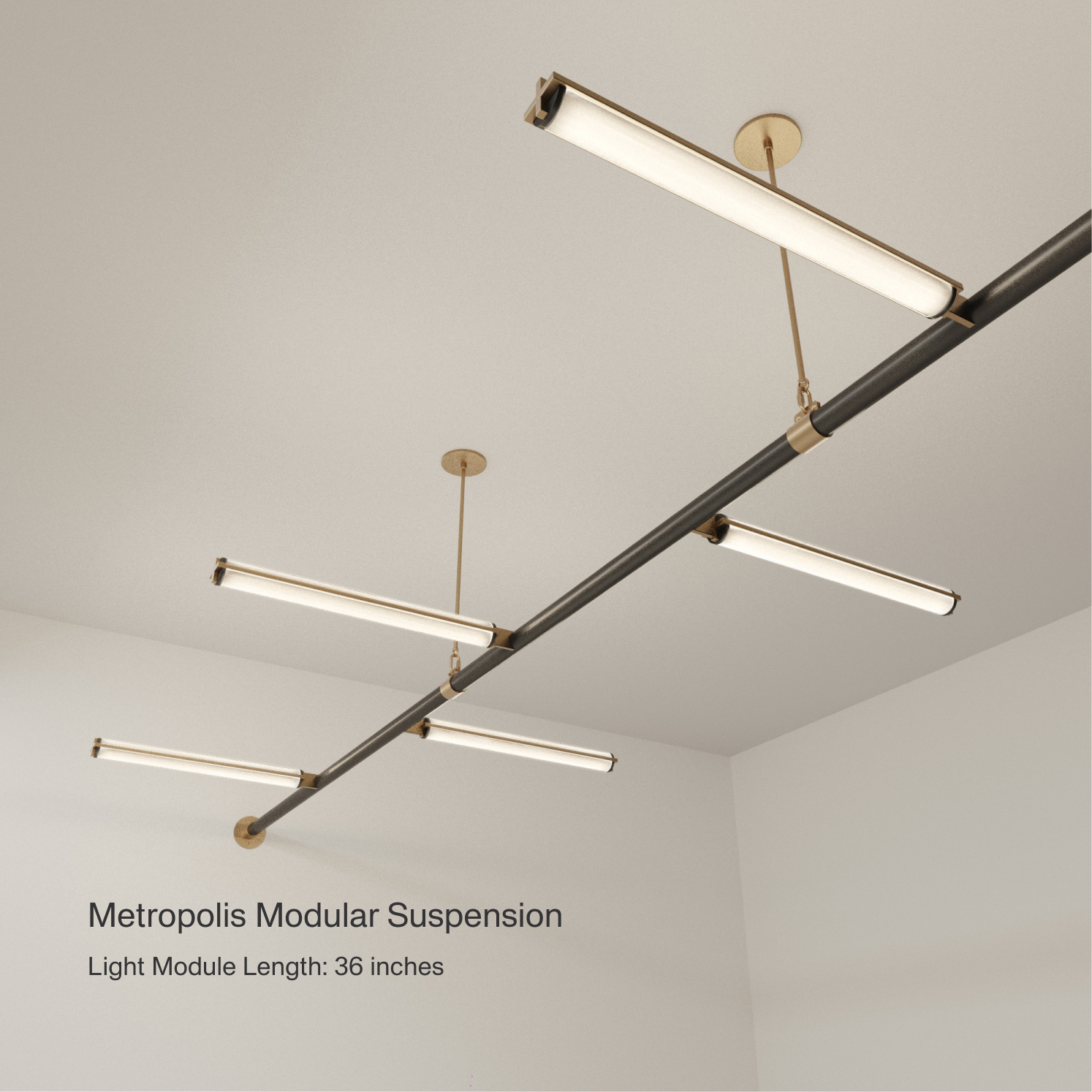

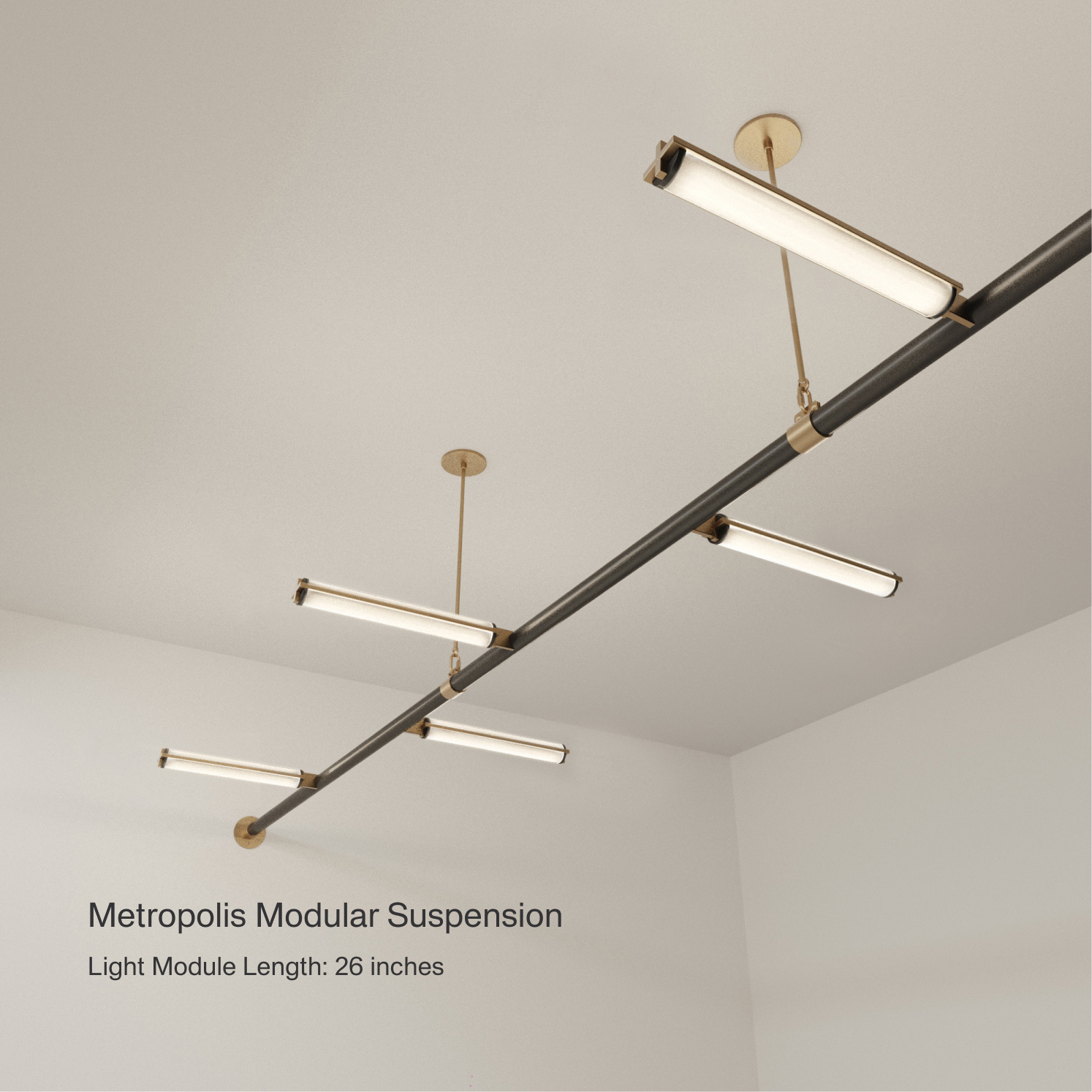

- Light modules: 26″ (4000 LM) and 36″ (6100 LM) lengths
- 24 VDC output Class 2 constant voltage power supply (remote)
- 120–277 VAC input voltage
- Dimming options: TRIAC, ELV, or 0–10 V to 1% stand
- Unison (combined) or Independent Direct/Indirect control
- Field-adjustable aircraft cables and clear-jacketed co-axial silver cord
- Maximum suspension length: 48″

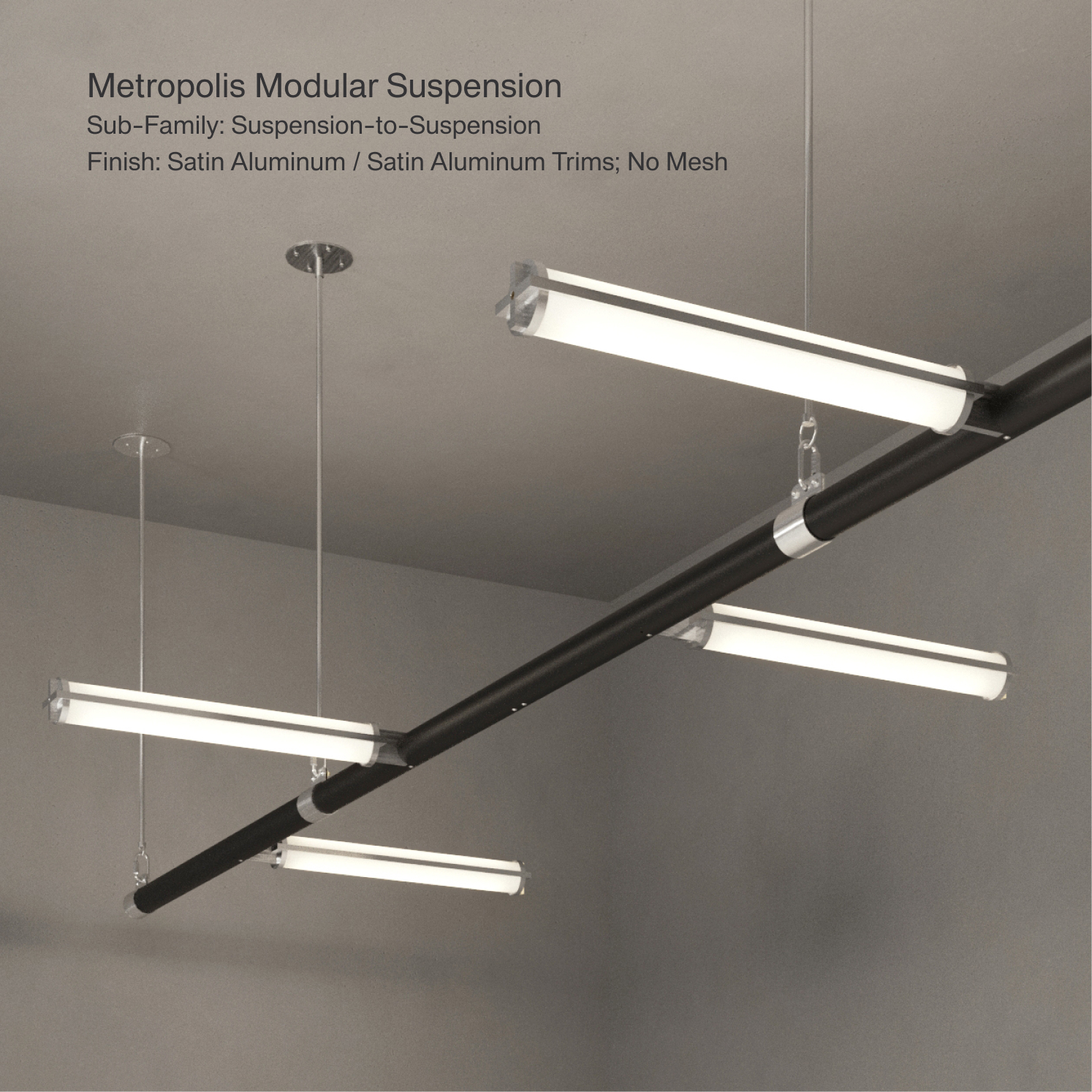

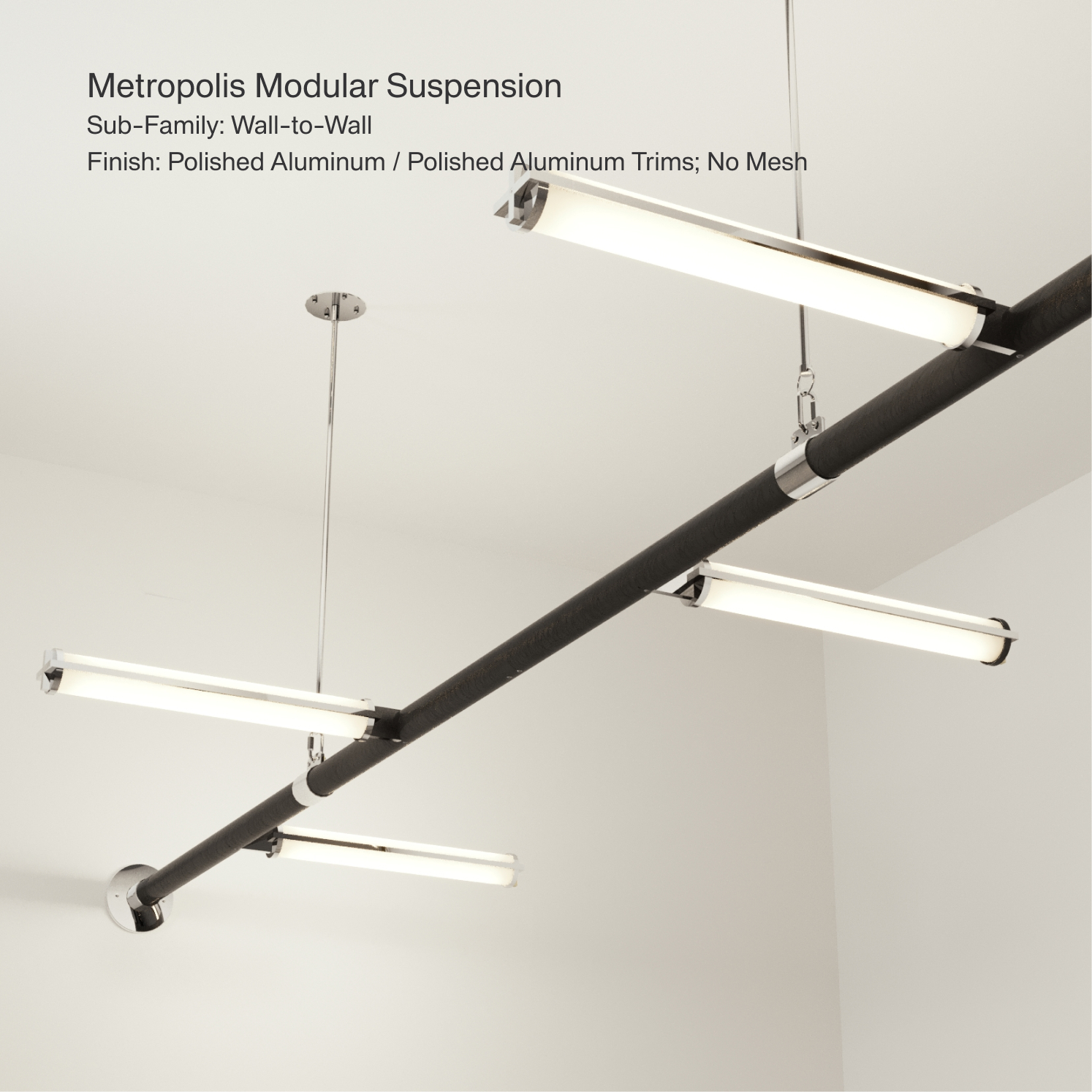

- End-to-End Configurations: Suspension-to-Suspension, Wall-to-Wall, Wall-to-Suspension
- CRI 95+
- R9 90+
- 110 LM/W delivered efficacy

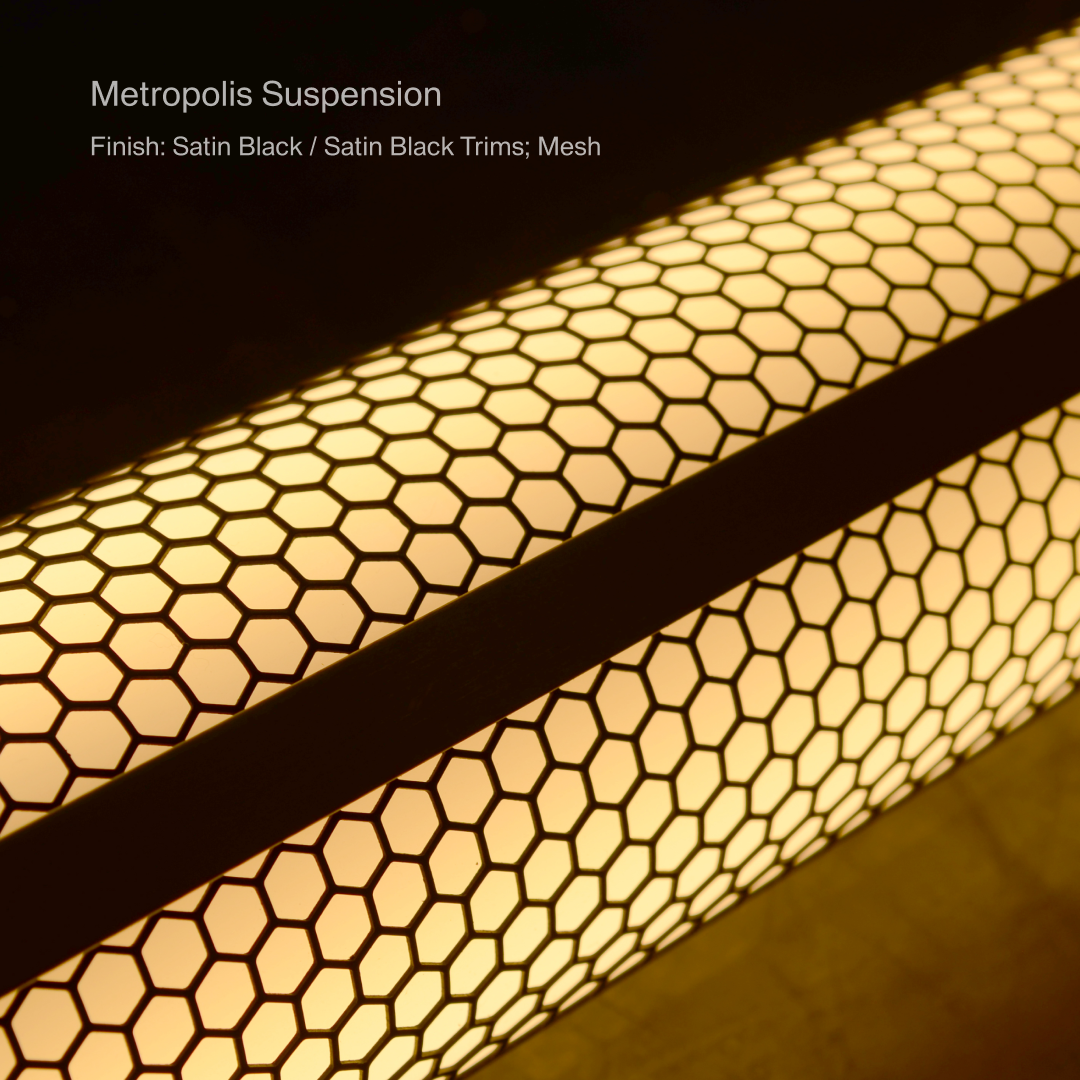

- Optional black mesh for added diffusion
Downloads
System Guide
The ultimate resource for gaining a deeper understanding of the system, complete with detailed technical specifications.
Installation Guides
A detailed resource for proper installation and setup of Juniper Cylinders to ensure optimal performance.
Product Files
Revit and STEP files are available to integrate precise lighting models into your designs.
IES Files
Photometric data essential for accurate lighting simulations.
