Multiverse Power Hub
Multiverse Power Hub
Local Power Supply

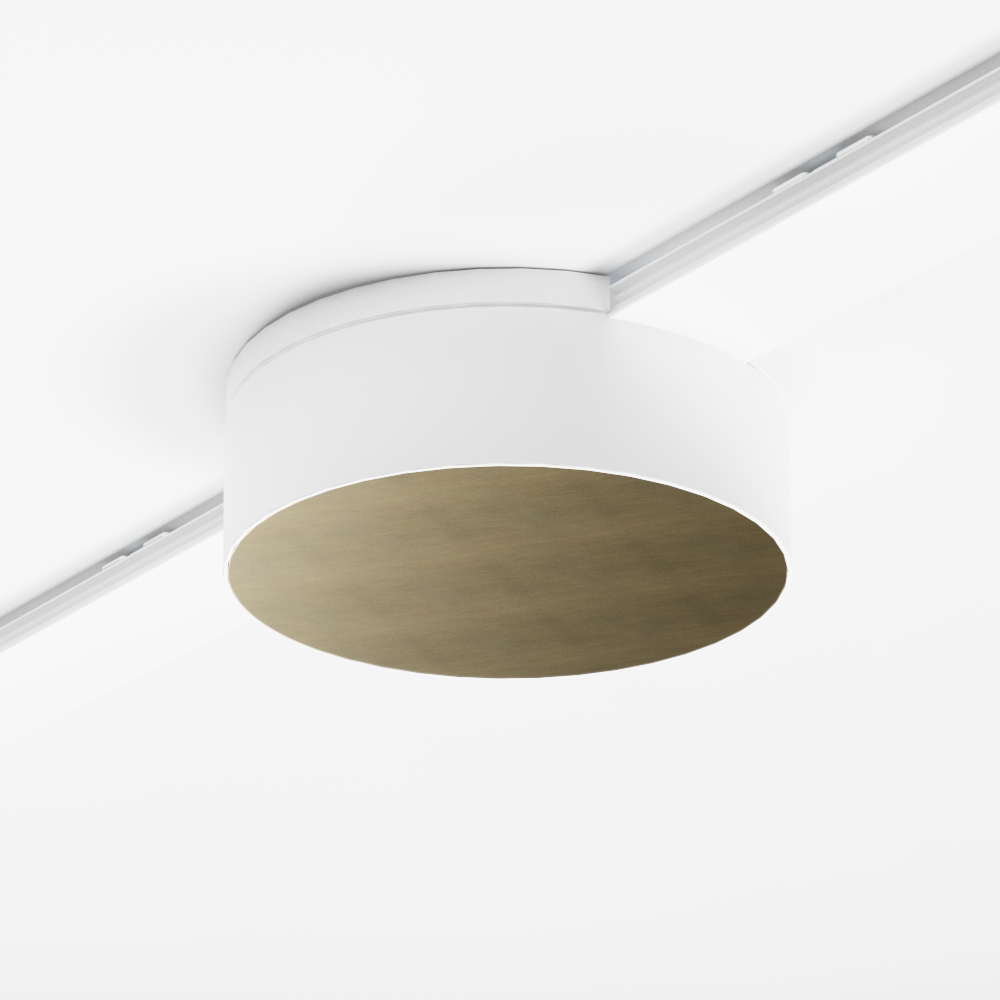

Local power for a Multiverse run, in a 5″ round surface-mounted cover. One hub powers both circuits in the run. It mounts to a standard 4″ octagon junction box or mud ring, supplied by the electrician, on the wall or the ceiling. Available in 30W, 60W and 96W. Dims to 1% or 0.1% depending on which spotlight you specify.
If you want the two circuits controlled independently, you need a second hub. Some fixtures come with a power supply. Check the fixture’s page before ordering one separately.
Online purchases include complimentary ground shipping within the United States.
Configurator Code:
JPR-MLTV-ECL1------------
Specifications
Electrical
- 120–277 VAC input, 24 VDC output
- UL Listed
- Available in 30 W, 60 W, and 96 W
Mounting & Application
- Mounts to a typical 4″ octagon junction box or mud ring (by others)
- Can be mounted to the wall or ceiling
- Surface-mounted local power solution for the Multiverse ribbon
Circuits & Dimming
- One Multiverse Power Hub can power both ribbon circuits
- For independent two-circuit control, a second power supply is required
- Forward-phase, reverse-phase, and 0–10 V dimming to 1% or 0.1%, depending on the luminaire specified
