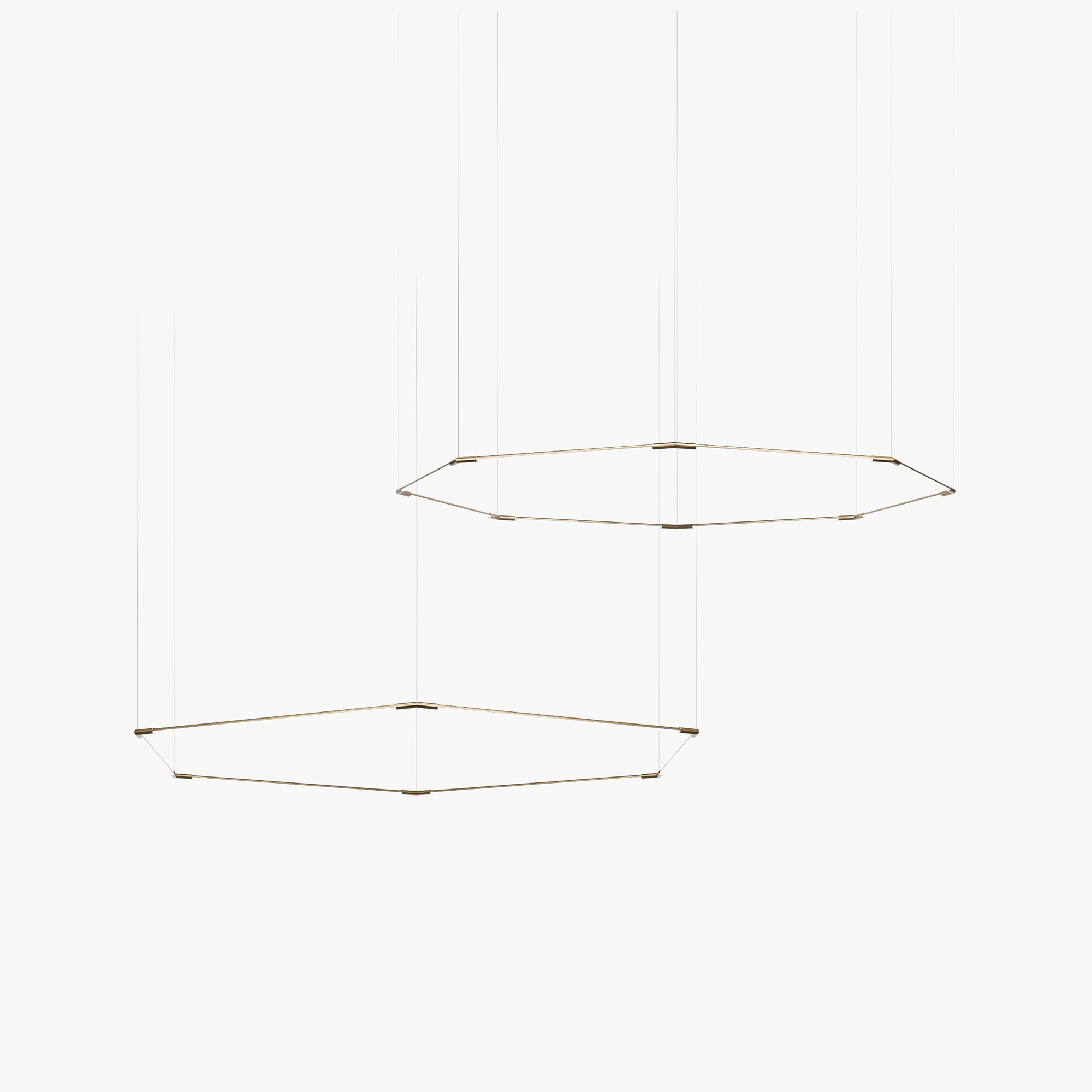

THIN Primaries Suspensions — Direct Mount. Hexagon / Octagon
Light segments in 2′ and 3′ nominal lengths are attached together — using simple snap-in magnetic connector rings — to create suspended geometric configuration
Pricing applicable to United States and Canada only.
Shipping not included for Alaska, Hawaii, and Canada.
Specifications
- Segments can individually rotate 360°
- 24 VDC output Class 2 constant voltage power supply
- 120–277 VAC input voltage
- Dimming options: 2-Wire/TRIAC/Forward Phase; 0–10 V; 3-Wire
- CRI 95+
- R9 90+
- 90 LM/W delivered efficacy
- 300 LM per linear foot (maximum)
- Frosted lens with 90° beam spread
- Direct-mount to ceiling
- Field-adjustable aircraft cables and clear-jacketed co-axial silver cord
Downloads
System Guide
The ultimate resource for gaining a deeper understanding of the system, complete with detailed technical specifications.
Installation Guides
A detailed resource for proper installation and setup of THIN System to ensure optimal performance.
Product Files
Revit and STEP files are available to integrate precise lighting models into your designs.
IES Files
Photometric data essential for accurate lighting simulations.
